The recommended operating temperature range for the WH1602B is -20°C to 70°C, and the storage temperature range is -30°C to 80°C.
To initialize the WH1602B, send the following commands in sequence: 0x30 (8-bit mode), 0x30 (8-bit mode), 0x38 (8-bit mode, 2 lines, 5x7 dots), 0x0C (display on, cursor off), 0x01 (clear display), and 0x06 (entry mode, increment, shift cursor to right).
The maximum current consumption of the WH1602B is approximately 1.5mA (typical) and 2.5mA (maximum) when the backlight is off, and 30mA (typical) and 40mA (maximum) when the backlight is on.
Yes, the WH1602B can be used with a 5V microcontroller, but you may need to use level shifters or voltage dividers to convert the 5V logic levels to 3.3V, which is the recommended operating voltage for the display module.
The contrast of the WH1602B display can be adjusted by applying a voltage to the V0 pin, which is typically between 0.4V and 1.2V. You can use a potentiometer or a digital-to-analog converter to generate the desired voltage.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
WH1602B Overview

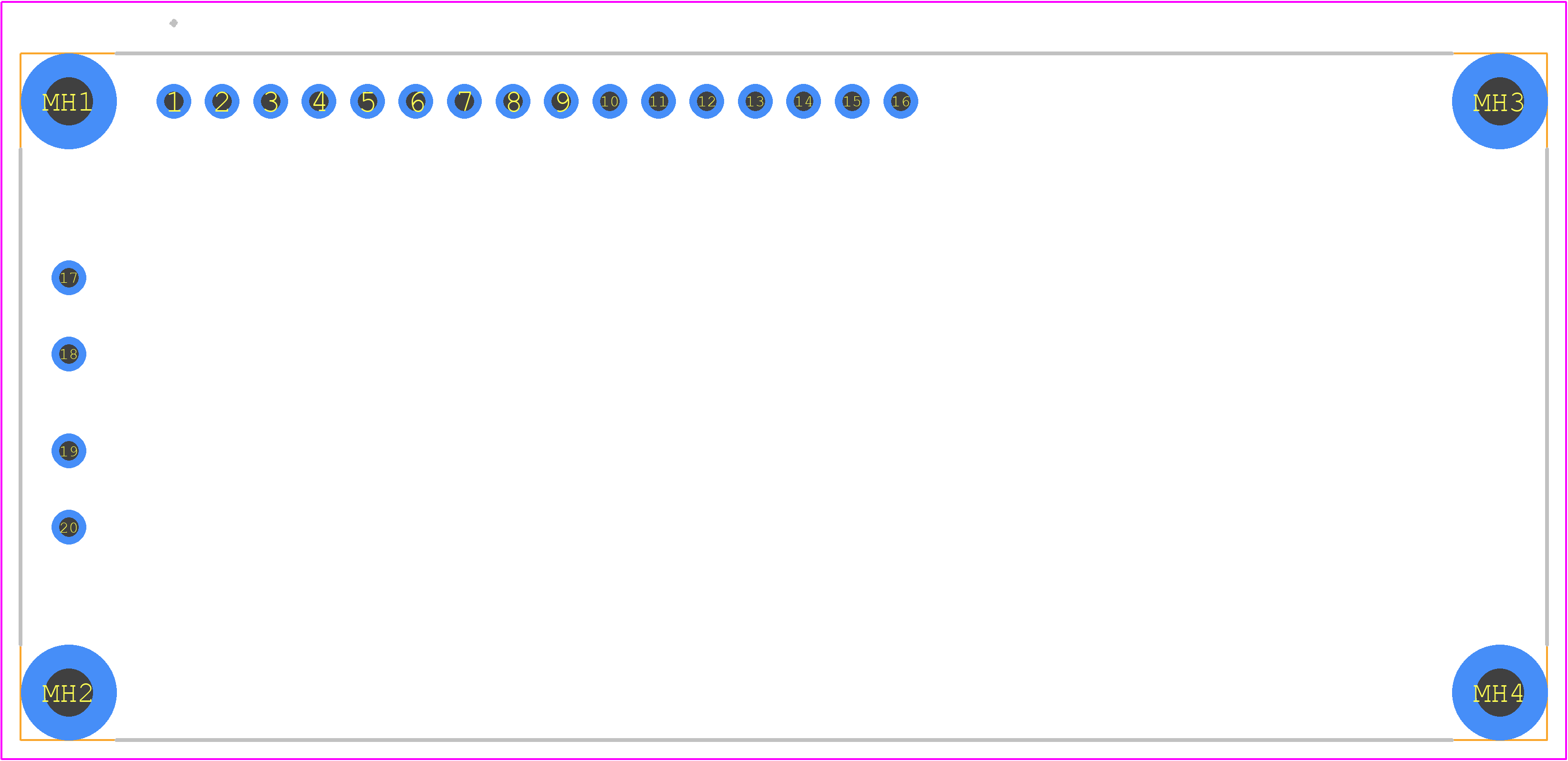

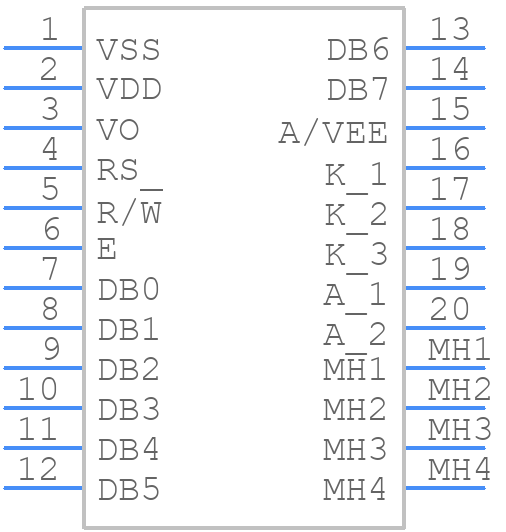

Use the download button to access the WH1602B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like WH160,
or try a keyword search, such as LCD Displays
