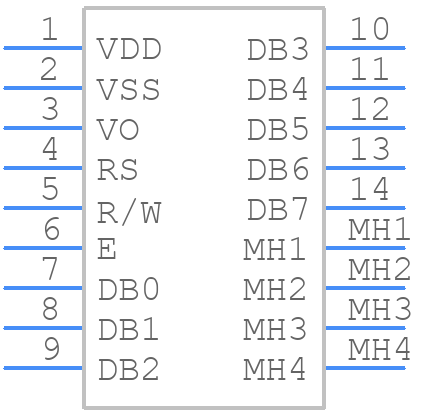

WH1602D footprint, schematic symbol and 3D model by Winstar

Symbol

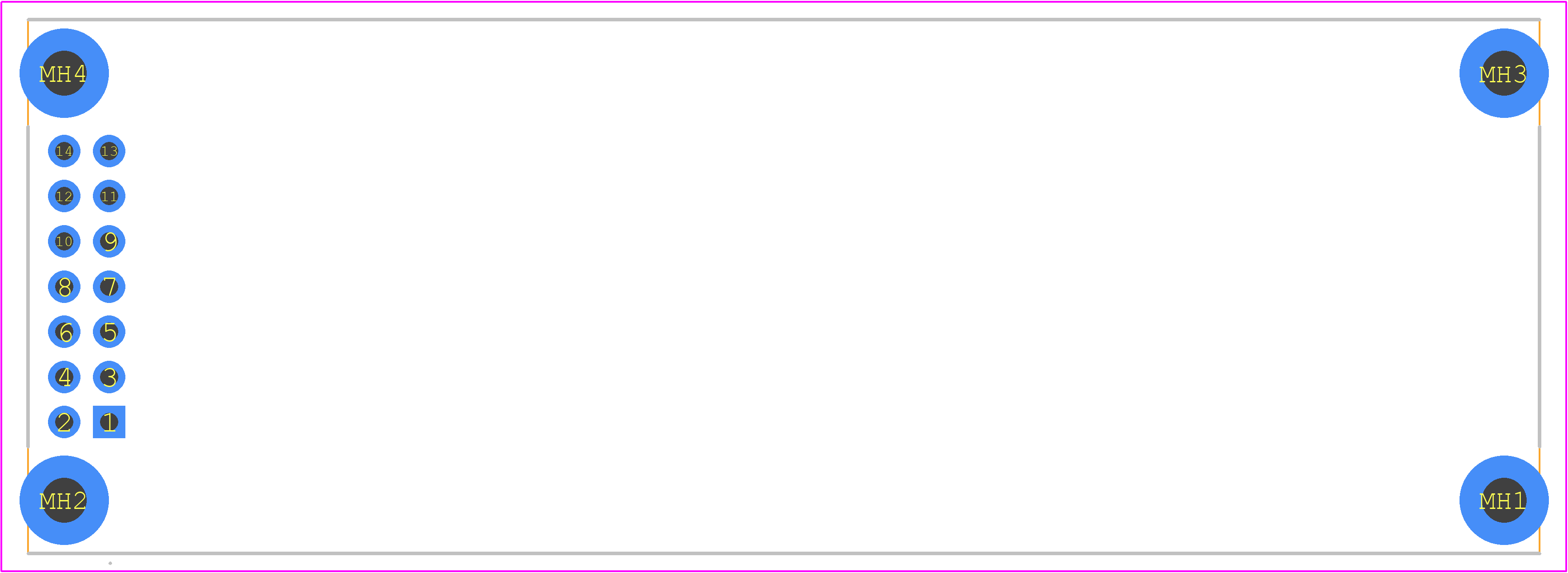

PCB Footprints

3D Models

WH1602D Details

The recommended operating temperature range for the WH1602D is -20°C to 70°C, and the storage temperature range is -30°C to 80°C.
To initialize the display module, send the following commands in sequence: 0x30 (function set), 0x0C (display on), 0x01 (clear display), and 0x06 (entry mode set).
The maximum current consumption of the WH1602D is 50mA, with a typical current consumption of 20mA.
Yes, the WH1602D can be used with a 5V microcontroller, but you may need to use level shifters or voltage dividers to ensure the logic levels are compatible.
When writing data to the display, you should poll the busy flag (BF) by reading the status of the display. If the BF is high, the display is busy and you should wait before sending the next command or data.

Expert Contribution

System Verified

Community Approved

Use the download button to access the WH1602D schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like WH160, or try a keyword search, such as LCD Displays
