WH1602L - Winstar

Description: (16 characters x 2 lines, transflective, positive FSTN, white background, black characters)

Download WH1602L Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this WH1602L model

Email notifications will be applied after download.

Send part feedback

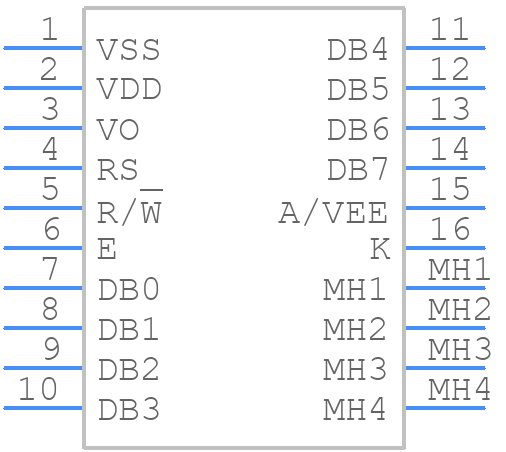

Symbol

WH1602L - Winstar - PCB symbol

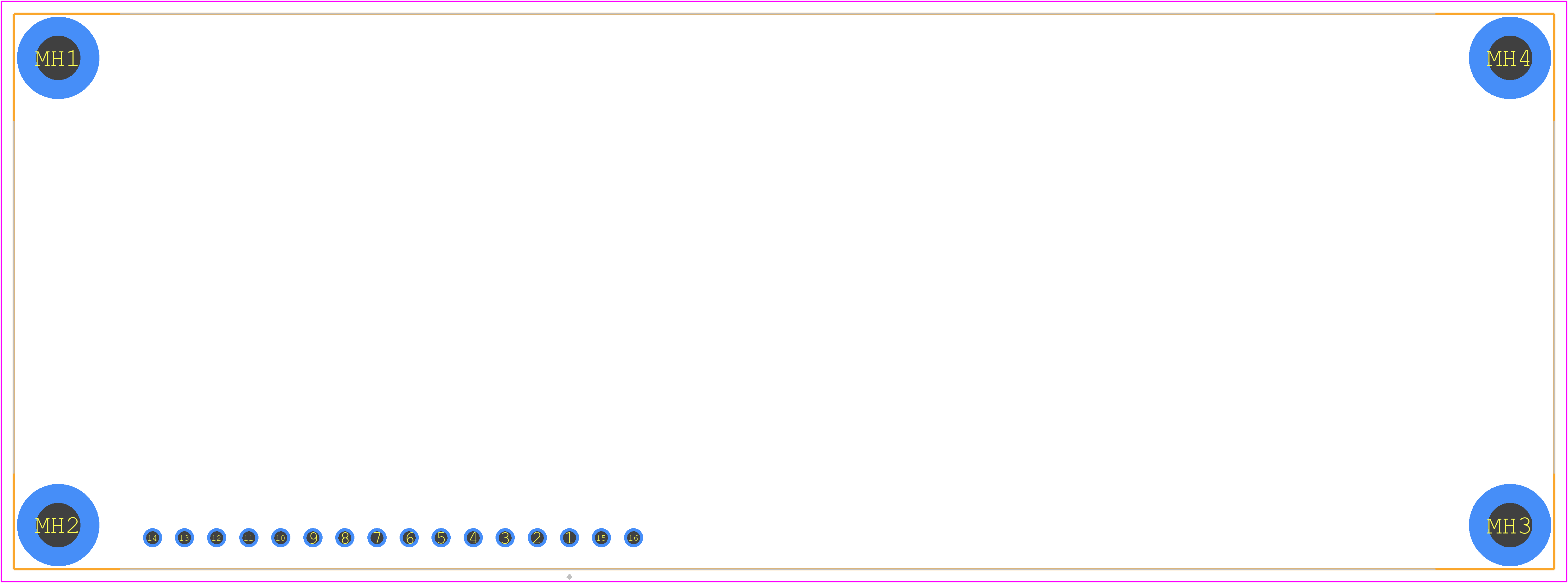

PCB Footprints

WH1602L - Winstar PCB footprint - Other - Other - WH1602L-1

3D Models

WH1602L - Winstar - 3D model - Other - WH1602L-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for WH1602L
Part Number WH1602L
Manufacturer Winstar
Pin Count 20
Part Category Display
Package Category Other
Footprint Name Other - WH1602L-1
Released Date Jan 12, 2021
Last Modified Date Jun 22, 2023 10:55 AM UTC
Pinout / Pin List Click Here (Member Only)

WH1602L Details

Manufacturer Part Number:
WH1602L
Part Life Cycle Code:
Obsolete
