WH1602S - Winstar

Description: Display Format:16�2 Outline:59�29.3 Character Size:2.45�4.67 Interface:6800,SPI,I2C

Download WH1602S Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this WH1602S model

Email notifications will be applied after download.

Send part feedback

Symbol

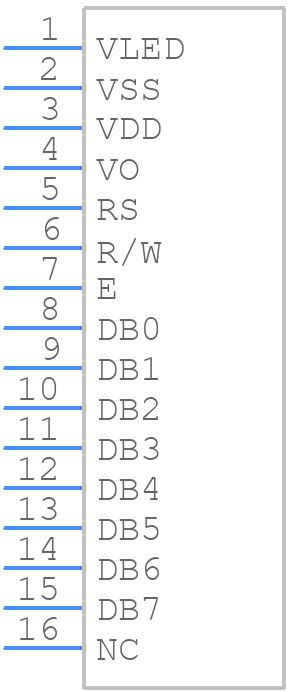

WH1602S - Winstar - PCB symbol

PCB Footprints

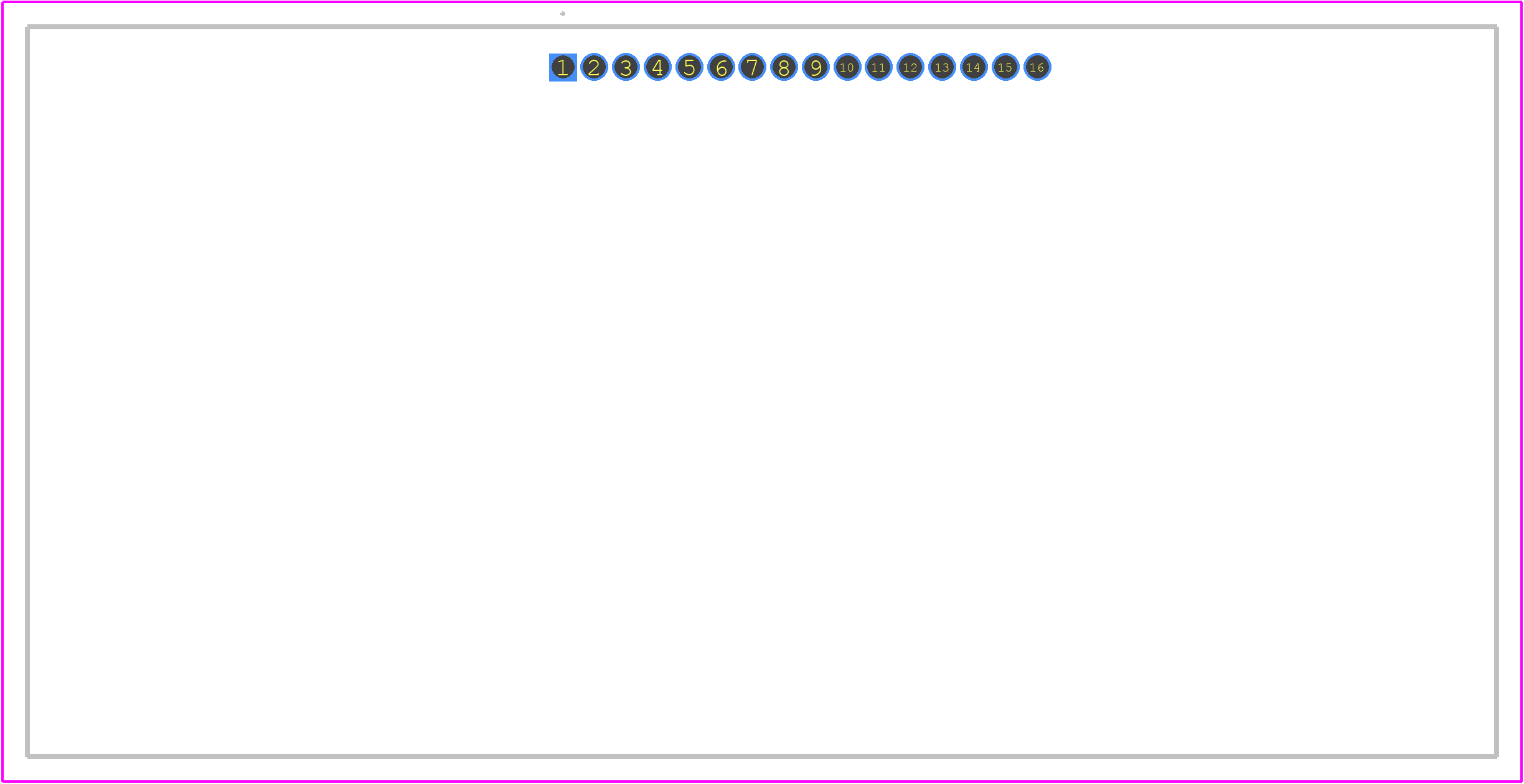

WH1602S - Winstar PCB footprint - Other - Other - WH1602S-4

3D Models

WH1602S - Winstar - 3D model - Other - WH1602S-4

Datasheet Download Datasheet
Stock & Prices Price & Stock for WH1602S
Part Number WH1602S
Manufacturer Winstar
Pin Count 16
Part Category Display
Package Category Other
Footprint Name Other - WH1602S-4
Released Date Jul 28, 2023
Last Modified Date Jul 28, 2023 6:47 AM UTC
Pinout / Pin List Click Here (Member Only)

WH1602S Details

Manufacturer Part Number:
WH1602S
Part Life Cycle Code:
End Of Life
Manufacturer:
Winstar Display Co Ltd
YTEOL:
0.4

Trust Checks

Community Provided

System Verified

Community Approved

WH1602S Overview

Use the download button to access the WH1602S schematic symbol, PCB footprint, and 3D model.
