WH1602W footprint, schematic symbol and 3D model by Winstar

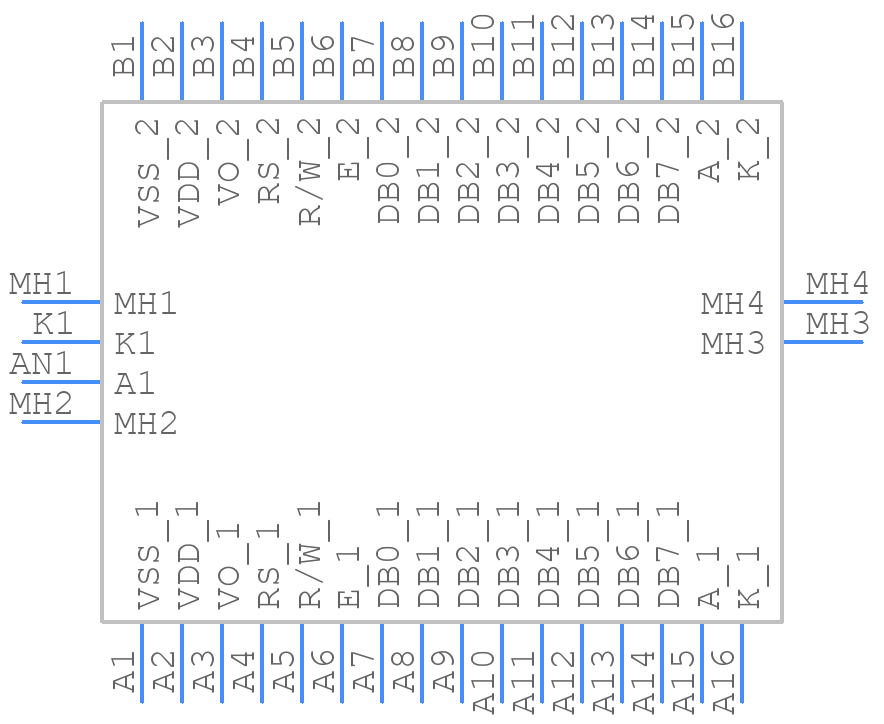

Symbol

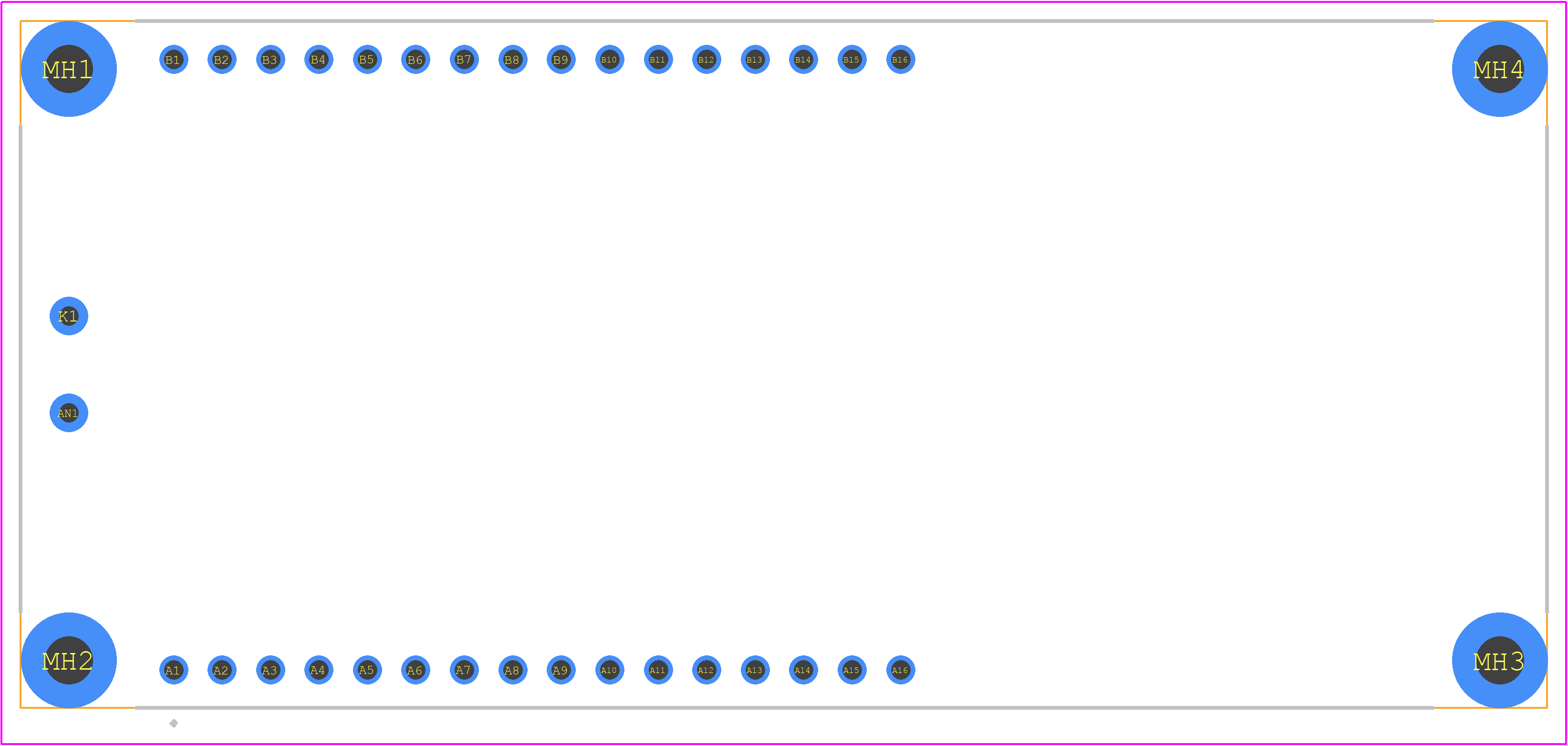

PCB Footprints

3D Models

WH1602W Details

The recommended operating temperature range for the WH1602W is -20°C to 70°C, and the storage temperature range is -30°C to 80°C.
To initialize the WH1602W, send the following commands in sequence: 0x30 (function set), 0x0C (display on), 0x01 (clear display), and 0x06 (entry mode set).
The maximum current consumption of the WH1602W is approximately 1.5mA when the backlight is on, and 0.5mA when the backlight is off.
Yes, the WH1602W can be used with a 5V microcontroller, but you may need to use level shifters or voltage dividers to convert the 5V logic levels to 3.3V, which is the recommended logic level for the display module.
The contrast of the WH1602W can be adjusted by applying a voltage to the V0 pin, which is typically between 0.4V and 1.2V. You can use a potentiometer or a digital-to-analog converter to adjust the contrast voltage.

System Verified

Use the download button to access the WH1602W schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like WH160, or try a keyword search, such as LCD Displays
