WH2004L footprint, schematic symbol and 3D model by Winstar

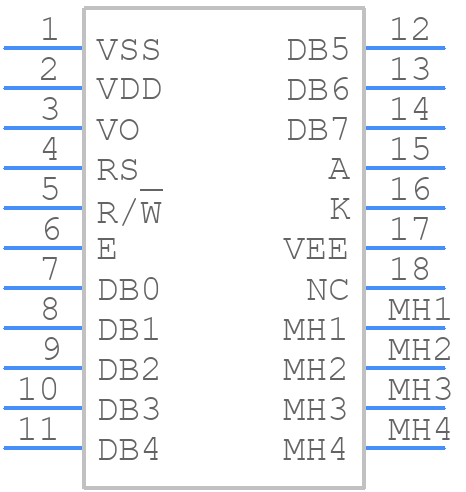

Symbol

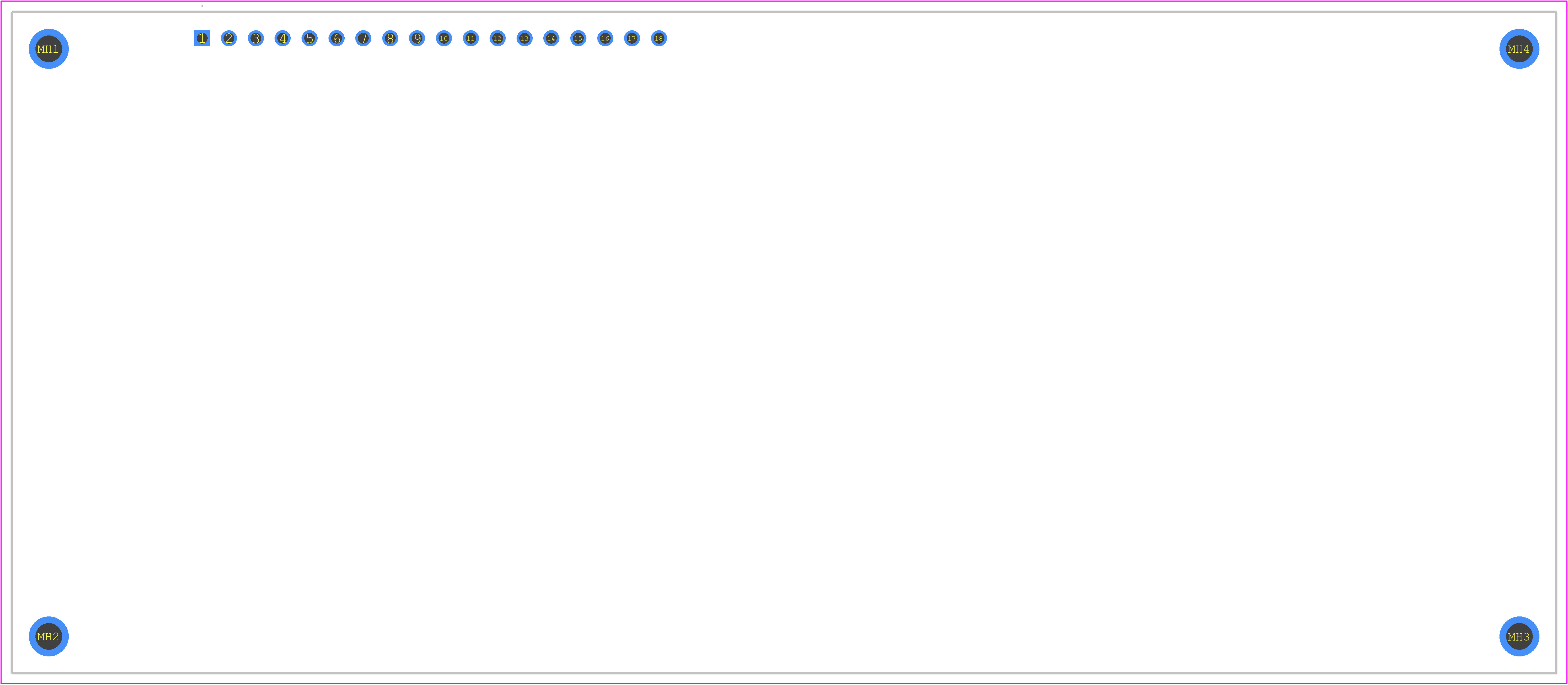

PCB Footprints

3D Models

WH2004L Details

The recommended storage temperature range for the WH2004L is -20°C to 60°C (-4°F to 140°F).
The WH2004L is not designed for outdoor use and may not perform well in direct sunlight or extreme temperatures. However, it can be used in indoor applications with moderate temperature and humidity conditions.
The typical response time of the WH2004L is around 10-20 ms (millisecond) for a 25°C (77°F) operating temperature.
The WH2004L is designed to operate with 3.3V logic, but it can be compatible with 5V logic with proper level shifting or voltage translation.
The recommended operating temperature range for the WH2004L is 0°C to 50°C (32°F to 122°F).

Community Provided

System Verified

Community Approved

Use the download button to access the WH2004L schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like WH200, or try a keyword search, such as LCD Displays
