- Part Number WH4004A
- Manufacturer Winstar
- Pin Count 26
- Part Category Display
- Package Category Other
- Footprint Name Other - WH4004A-5
- Released Date Feb 20, 2024
- Last Modified Date Feb 20, 2024 9:56 AM UTC
- Pinout / Pin List Click Here (Member Only)
WH4004A Details
-
Manufacturer Part Number:
WH4004A
-
Part Life Cycle Code:
Contact Manufacturer
-
Manufacturer:
Winstar Display Co Ltd
-
Optoelectronic Device Type:
5 X 8 DOT MATRIX LCD DISPLAY
WH4004A Frequently Asked Questions (FAQs)
-
The recommended storage temperature for WH4004A is -20°C to 60°C (-4°F to 140°F).
-
Yes, WH4004A is suitable for outdoor applications, but it's recommended to use a protective coating or enclosure to prevent damage from environmental factors like moisture, dust, and UV light.
-
The typical response time of WH4004A is around 10-20 ms, but this can vary depending on the specific application and operating conditions.
-
Yes, WH4004A is compatible with 5V logic, but it's recommended to use a level shifter or voltage regulator to ensure stable operation and prevent damage to the display.
-
WH4004A is designed to withstand moderate vibrations, but it's recommended to use additional mounting or securing mechanisms to prevent damage in high-vibration environments.
Trust Checks
Community Provided
System Verified
Community Approved
WH4004A Overview

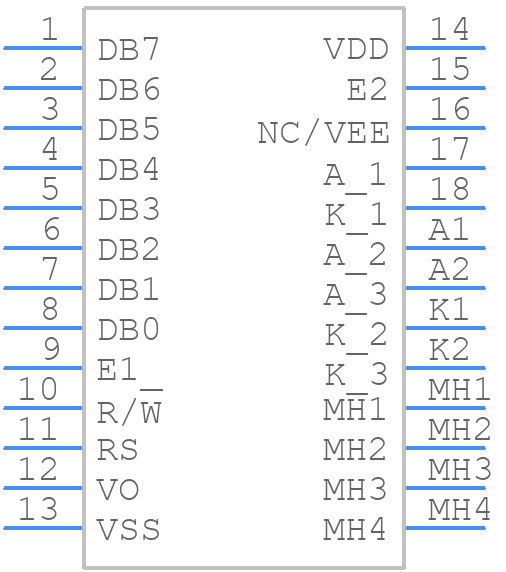

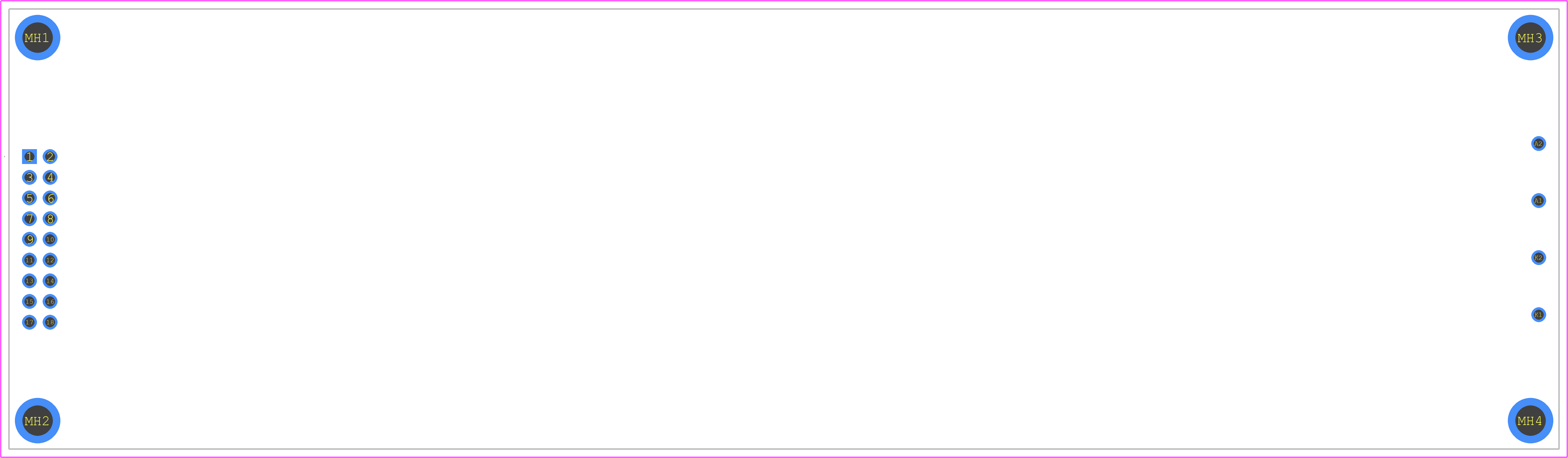

Use the download button to access the WH4004A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like WH400,
or try a keyword search, such as LCD Displays
