The thermal resistance of the WHC1K0FET is not explicitly stated in the datasheet, but according to Ohmite's application notes, the thermal resistance (RθJA) is approximately 10°C/W for the TO-220 package.
While the WHC1K0FET is primarily designed for low-frequency applications, it can be used in high-frequency applications up to 100 kHz with proper PCB layout and decoupling. However, it's essential to consider the device's parasitic capacitance and inductance when designing for high-frequency use.
To ensure reliable operation in high-temperature environments, it's crucial to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and derating the device's power dissipation according to the temperature derating curve provided in the datasheet.
Ohmite recommends storing the WHC1K0FET in a dry, cool place, away from direct sunlight and moisture. When handling the device, it's essential to follow proper ESD precautions, such as using an anti-static wrist strap or mat, to prevent damage from electrostatic discharge.
While the WHC1K0FET is primarily designed for linear applications, it can be used in switching power supply applications with proper design considerations. However, the device's switching characteristics, such as rise and fall times, may not be optimized for high-frequency switching applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
WHC1K0FET Overview

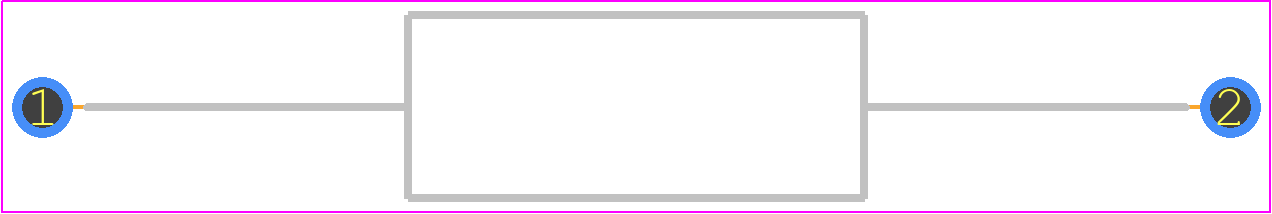

Use the download button to access the WHC1K0FET schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like WHC1K,
or try a keyword search, such as Wire Wound Resistors
