WINCS02IC-I/ZZX - Microchip

Description: The WINCS02IC is a low power consuming IC containing a 2.4 GHz IEEE 802.11b/g/n-compliant radio with integrated High Power Amplifier (HPA), Low Noise Amplifier (LNA), Radio Frequency (RF) switches for TX/RX control and hardware-based security accelerator.

Download WINCS02IC-I/ZZX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

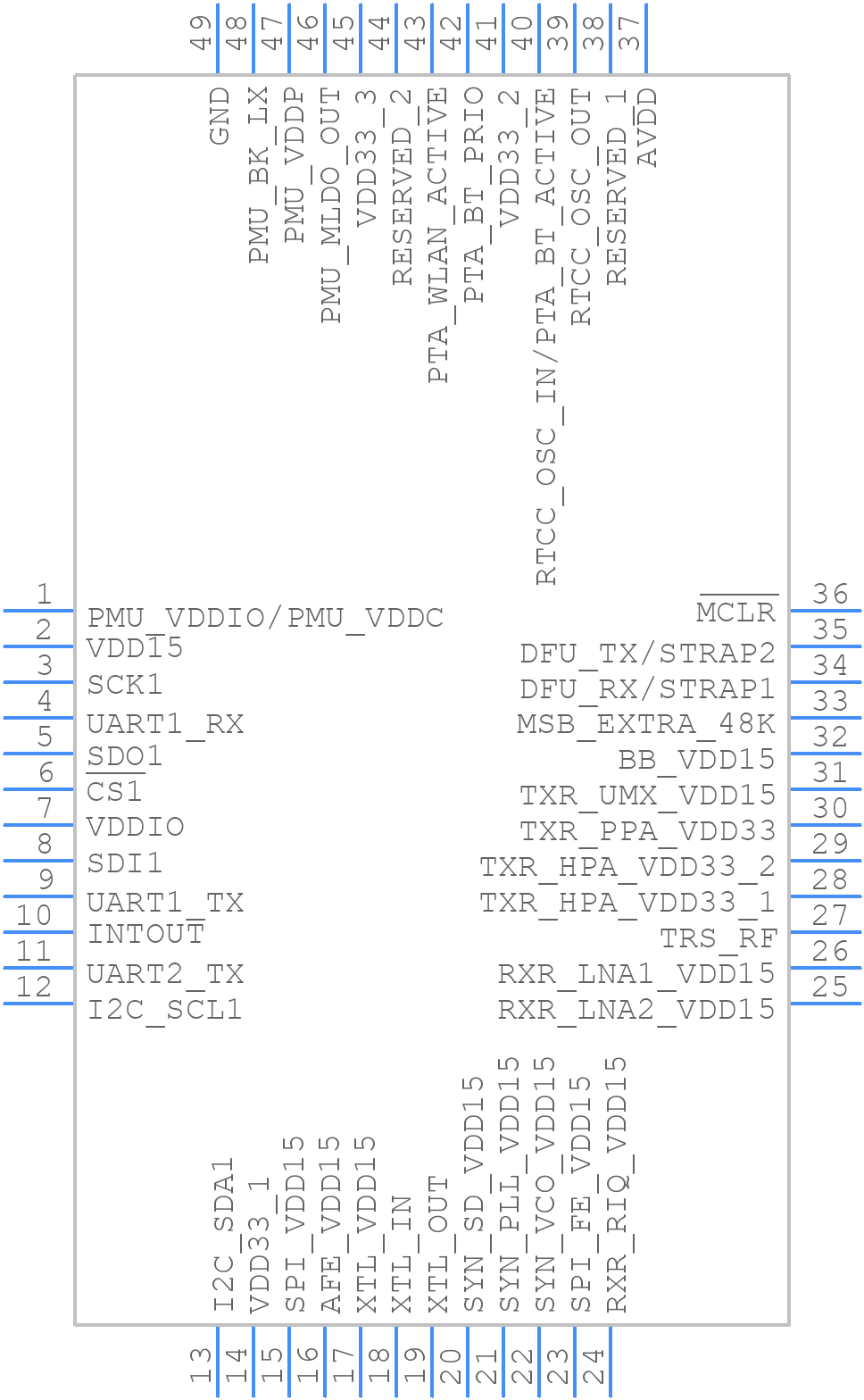

WINCS02IC-I/ZZX - Microchip - PCB symbol
click to zoom
PCB Footprints
WINCS02IC-I/ZZX - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 48-Lead Very Thin Plastic Quad Flat, No Lead Package (ZZX) - 7x7 mm Body [VQFN] With 5.3 mm Exposed Pad-
click to zoom
3D Models
WINCS02IC-I/ZZX - Microchip - 3D model - Quad Flat No-Lead - 48-Lead Very Thin Plastic Quad Flat, No Lead Package (ZZX) - 7x7 mm Body [VQFN] With 5.3 mm Exposed Pad-
click to zoom
  • Datasheet Download Datasheet
  • Stock & Prices $ Price & Stock for WINCS02IC-I/ZZX
  • Part Number WINCS02IC-I/ZZX
  • Manufacturer Microchip
  • Pin Count 49
  • Part Category Integrated Circuit
  • Package Category Quad Flat No-Lead
  • Footprint Name Quad Flat No-Lead - 48-Lead Very Thin Plastic Quad Flat, No Lead Package (ZZX) - 7x7 mm Body [VQFN] With 5.3 mm Exposed Pad-
  • Released Date Jun 6, 2025
  • Last Modified Date Jun 6, 2025 10:02 AM UTC
  • Pinout / Pin List Click Here (Member Only)

WINCS02IC-I/ZZX Details

  • Manufacturer Part Number:

    WINCS02IC-I/ZZX

  • Part Life Cycle Code:

    Active

  • Pin Count:

    48

  • Manufacturer Package Code:

    VQFN-48

  • Country Of Origin:

    Taiwan, Thailand

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    5 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    23

  • uPs/uCs/Peripheral ICs Type:

    RFSoC
