5 X 4.40 MM, 1 MM HEIGHT, LEAD FREE, MO-153AB, TSSOP-16
HTS Code:
8542.39.00.40
Factory Lead Time:
22 Weeks
Manufacturer:
Cirrus Logic
YTEOL:
7.98
Converter Type:
D/A CONVERTER
Input Bit Code:
BINARY
Input Format:
SERIAL
JESD-30 Code:
R-PDSO-G16
Length:
5 mm
Number of Bits:
24
Number of Functions:
1
Number of Terminals:
16
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
TSSOP
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Seated Height-Max:
1.2 mm
Supply Voltage-Nom:
3.3 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Width:
4.4 mm
WM8524CGEDT/R Frequently Asked Questions (FAQs)
The recommended layout and routing for the WM8524CGEDT/R can be found in the Cirrus Logic application note AN215, which provides guidelines for PCB layout, component placement, and routing to ensure optimal performance and minimize noise.
The WM8524CGEDT/R can be configured for different audio formats using the I2C interface. The device has several registers that control the audio format, sample rate, and bit depth. Refer to the datasheet and the Cirrus Logic audio codec programming guide for more information.
The power consumption of the WM8524CGEDT/R depends on the operating mode and the clock frequency. In typical operating conditions, the device consumes around 20-30 mA. Refer to the datasheet for more information on power consumption in different operating modes.
To troubleshoot issues with the WM8524CGEDT/R, start by checking the power supply, clock, and reset signals. Verify that the device is properly configured and that the I2C interface is functioning correctly. Use a logic analyzer or oscilloscope to debug the digital signals. Refer to the datasheet and application notes for more troubleshooting tips.
Yes, the WM8524CGEDT/R can be used with a different clock source. The device has a clock input pin that can be connected to an external clock source. However, ensure that the clock frequency and jitter meet the requirements specified in the datasheet.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
WM8524CGEDT/R Overview

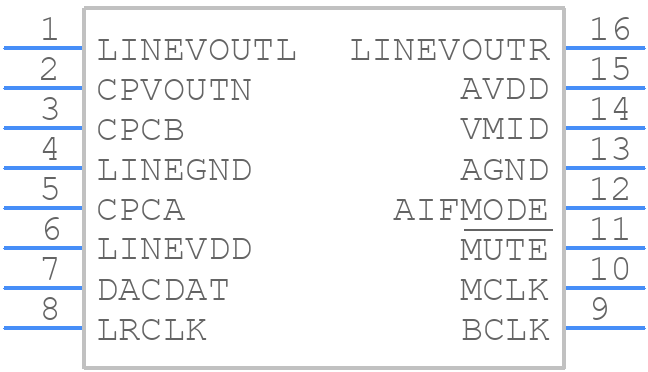

Use the download button to access the WM8524CGEDT/R schematic symbol and PCB footprint.
