WM8524CGEDT - Cirrus Logic

Description: Audio D/A Converter ICs Stereo DAC, 2Vrms

Download WM8524CGEDT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

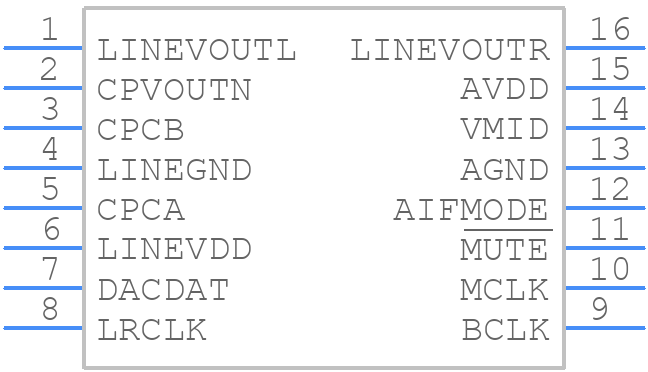

WM8524CGEDT - Cirrus Logic - PCB symbol
click to zoom
PCB Footprints
WM8524CGEDT - Cirrus Logic PCB footprint - Small Outline Packages - Small Outline Packages - 16L TSSOP-
click to zoom
3D Models
WM8524CGEDT - Cirrus Logic - 3D model - Small Outline Packages - 16L TSSOP-
click to zoom

WM8524CGEDT Details

  • Manufacturer Part Number:

    WM8524CGEDT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    5 X 4.40 MM, 1 MM HEIGHT, LEAD FREE, MO-153AB, TSSOP-16

  • HTS Code:

    8542.39.00.40

  • Factory Lead Time:

    21 Weeks

  • Manufacturer:

    Cirrus Logic

  • YTEOL:

    7.98

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    5 mm

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

WM8524CGEDT Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VDDIO, and then the clock signal. This ensures proper initialization of the device.
  • To configure the WM8524CGEDT for master clock mode, set the MCLK pin as an output by setting the MCLKOE bit in the Clock Control Register (0x04). Then, set the desired clock frequency using the MCLKDIV registers (0x05-0x06).
  • The digital mute pin (DMUTE) is used to mute the digital audio output. When DMUTE is high, the digital audio output is muted, and when it is low, the output is enabled.
  • To implement a 24-bit audio interface, set the I2S format to 24-bit using the I2S Control Register (0x10). Then, configure the data alignment and justification using the I2S Data Alignment Register (0x11) and the I2S Justification Register (0x12).
  • The WM8524CGEDT supports clock frequencies up to 50 MHz.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

WM8524CGEDT Overview

Use the download button to access the WM8524CGEDT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like WM852, or try a keyword search, such as Digital to Analog Converters
