The recommended power-up sequence is to apply the analog power supply (VDDA) first, followed by the digital power supply (VDDD). This ensures that the analog circuitry is powered up before the digital circuitry.
To optimize performance in a noisy environment, ensure that the device is properly decoupled, use a low-ESR capacitor for power supply filtering, and consider using a ferrite bead or common-mode choke to reduce high-frequency noise.
The WM8740SEDS/V supports clock frequencies up to 192 kHz, but the maximum frequency may vary depending on the specific application and system requirements.
To configure the WM8740SEDS/V for master clock mode, set the MCLK pin to the desired clock frequency, and ensure that the BCLK and LRCLK pins are properly configured to match the clock frequency and audio format.
The recommended layout and routing for the WM8740SEDS/V involves keeping analog and digital signals separate, using a star-grounding scheme, and minimizing signal trace lengths and vias to reduce noise and crosstalk.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
WM8740SEDS/V Overview

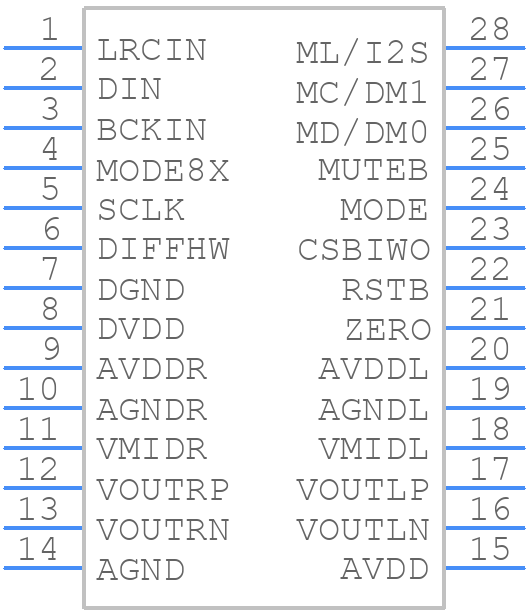

Use the download button to access the WM8740SEDS/V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like WM874,
or try a keyword search, such as Digital to Analog Converters
