The recommended power-up sequence is to apply VDD first, followed by VDDIO, and then the clock signal. This ensures that the internal voltage regulators and analog circuits are properly initialized.
The WM8960 is a highly configurable device. To configure it for a specific audio application, refer to the application notes and programming guides provided by Wolfson Microelectronics. These resources provide detailed information on how to set up the device for various audio scenarios, such as headphone amplifiers, line outputs, and microphone inputs.
The maximum power consumption of the WM8960 depends on the specific configuration and operating mode. However, according to the datasheet, the typical power consumption is around 12mA in stereo playback mode with a 3.3V supply voltage. It's essential to consult the datasheet and application notes for more detailed power consumption information.
To optimize the WM8960's performance for low-power applications, consider the following: reduce the clock frequency, disable unused features, use the power-down modes, and optimize the analog circuitry. Additionally, consult the application notes and datasheet for specific guidance on power-saving techniques.
The main difference between the WM8960CGEFL and WM8960CGEV is the package type. The WM8960CGEFL comes in a 32-pin QFN package, while the WM8960CGEV comes in a 32-pin WLCSP package. Both devices have the same electrical characteristics and functionality.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
WM8960CGEFL/V Overview

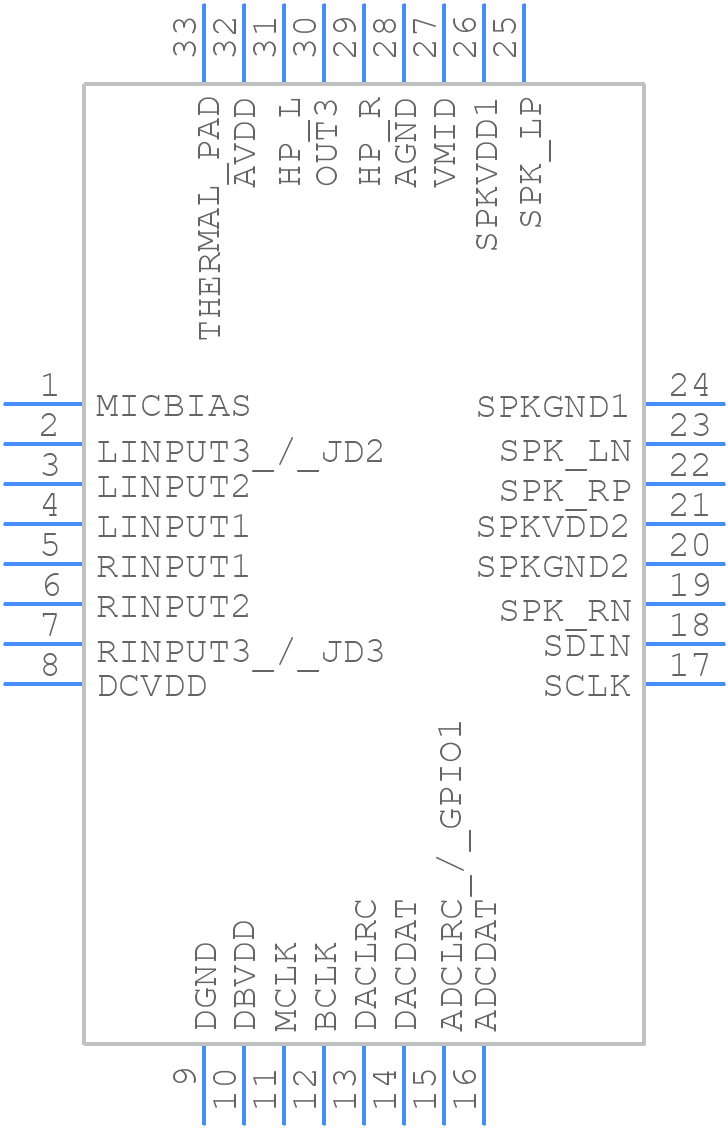

Use the download button to access the WM8960CGEFL/V schematic symbol, PCB footprint, and 3D model.
