WM9712CLGEFL/V - Cirrus Logic

Description: Interface - CODECs STEREO AC'97 CODEC T/P INTERFACE

Download WM9712CLGEFL/V Model

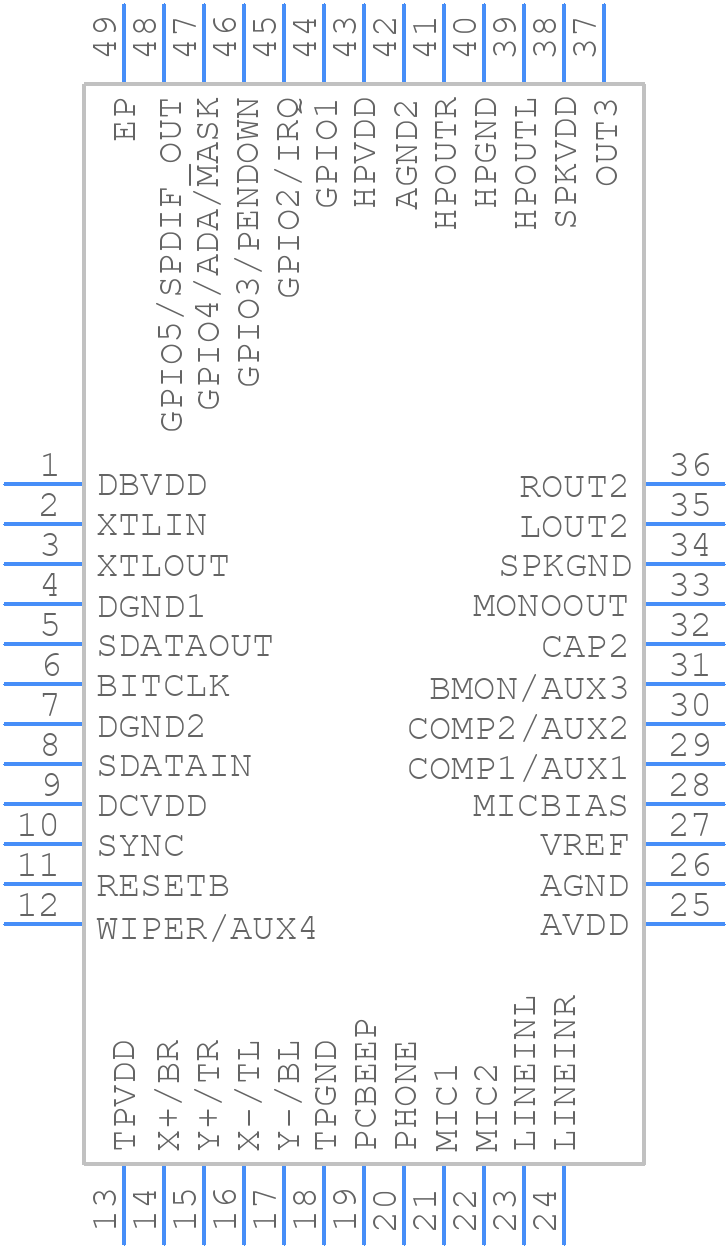

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
WM9712CLGEFL/V - Cirrus Logic PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 48qfn.
click to zoom
3D Models
WM9712CLGEFL/V - Cirrus Logic  - 3D model - Quad Flat No-Lead - 48qfn.
click to zoom

WM9712CLGEFL/V Details

  • Manufacturer Part Number:

    WM9712CLGEFL/V

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    7 X 7 MM, 0.90 MM HEIGHT, 0.50 MM PITCH, LEAD FREE, PLASTIC, MO-220VKKD-4, QFN-48

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Cirrus Logic

  • YTEOL:

    0

  • Filter:

    YES

  • JESD-30 Code:

    S-PQCC-N48

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    PCM CODEC

  • Temperature Grade:

    OTHER

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

WM9712CLGEFL/V Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the WM9712CLGEFL/V can be found in the Cirrus Logic application note AN215, which provides guidelines for PCB layout, component placement, and thermal management.
  • To optimize the WM9712CLGEFL/V for low power consumption, ensure that the device is operated in the correct power mode (e.g., idle or shutdown) when not in use, and adjust the clock frequency and voltage regulator settings according to the application's requirements.
  • The WM9712CLGEFL/V has a maximum junction temperature of 150°C. Ensure proper thermal management by providing adequate heat sinking, using thermal pads or heat sinks, and keeping the device away from heat sources.
  • To troubleshoot audio quality issues, check the device's clocking and synchronization, ensure proper gain staging and impedance matching, and verify that the analog-to-digital converters are properly configured and calibrated.
  • The WM9712CLGEFL/V has built-in ESD protection, but it is still important to follow proper handling and storage procedures to prevent damage. Use ESD-safe materials and equipment, and ensure that the device is properly grounded during handling and assembly.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

WM9712CLGEFL/V Overview

Use the download button to access the WM9712CLGEFL/V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like WM971, or try a keyword search, such as Codecs
