Technical Content
Part Image

WP4G+ - Mini-Circuits

Description: Signal Conditioning PWR SPLTR CMBD / SM / RoHS

Download WP4G+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

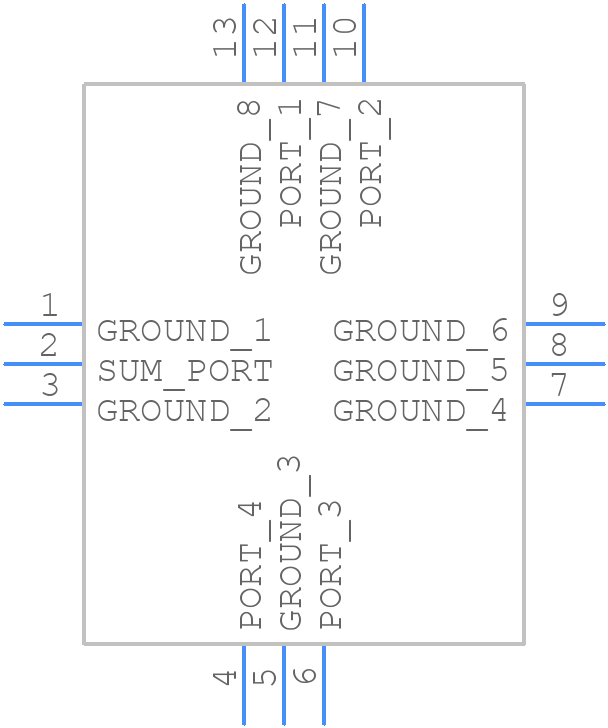

WP4G+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
WP4G+ - Mini-Circuits PCB footprint - Other - Other - WP4G+-2
click to zoom
3D Models
WP4G+ - Mini-Circuits - 3D model - Other - WP4G+-2
click to zoom

WP4G+ Details

  • Manufacturer Part Number:

    WP4G+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    0

  • Additional Feature:

    ISOLATION-MIN (DB):19

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    31.76 dBm

  • Insertion Loss-Max:

    1.4 dB

  • Isolation-Min:

    19 dB

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    12

  • Operating Frequency-Max:

    1660 MHz

  • Operating Frequency-Min:

    1420 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC12,.12SQ,20

  • RF/Microwave Device Type:

    COMBINER

  • Surface Mount:

    YES

  • VSWR-Max:

    1.4

WP4G+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes and evaluation board documentation. It's essential to follow these guidelines to ensure optimal performance, especially for high-frequency applications.
  • Impedance matching can be achieved using external components such as resistors, inductors, or capacitors. Mini-Circuits provides guidance on impedance matching in their application notes, and simulation tools like ADS or AWR can also be used to optimize the matching network.
  • While the datasheet specifies the maximum input power, it's essential to consider the device's thermal characteristics and heat dissipation capabilities. Mini-Circuits recommends derating the power handling based on the operating temperature and environment.
  • Yes, but it may require additional impedance matching and potentially affect the device's performance. Mini-Circuits provides guidance on using their products in non-50 ohm systems, and simulation tools can help optimize the design.
  • Mini-Circuits provides troubleshooting guides and application notes that cover common issues and their solutions. Additionally, using simulation tools and measurement equipment like vector network analyzers can help identify and resolve problems.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

WP4G+ Overview

Use the download button to access the WP4G+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search or try a keyword search, such as RF/Microwave Splitter/Combiners

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
