WP4L+ - Mini-Circuits

Description: 4 Ways MMIC Power Splitter, 2700 - 3800 MHz, 50Ω

Download WP4L+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

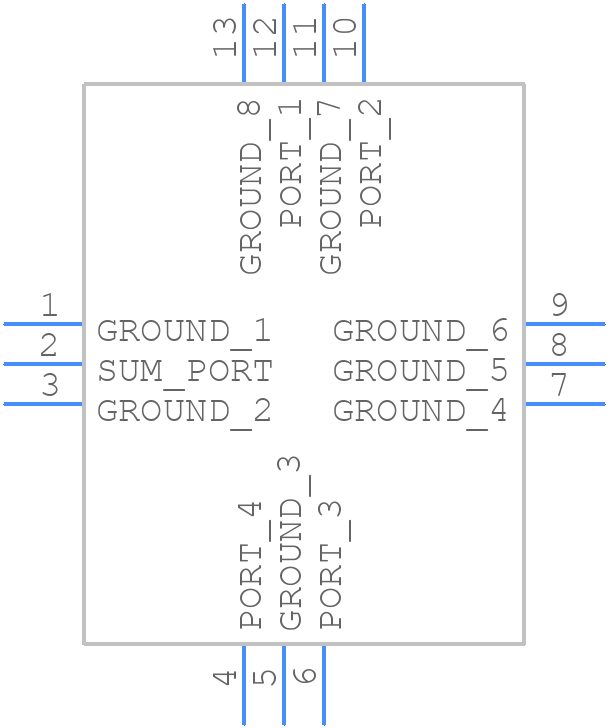

WP4L+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
WP4L+ - Mini-Circuits PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - DQ1225(H=0.991mm)
click to zoom
3D Models
WP4L+ - Mini-Circuits - 3D model - Quad Flat No-Lead - DQ1225(H=0.991mm)
click to zoom

WP4L+ Details

  • Manufacturer Part Number:

    WP4L+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    0

  • Additional Feature:

    ISOLATION-MIN (DB):16

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    31.76 dBm

  • Insertion Loss-Max:

    2.1 dB

  • Isolation-Min:

    16 dB

  • JESD-609 Code:

    e2

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    12

  • Operating Frequency-Max:

    3800 MHz

  • Operating Frequency-Min:

    2700 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC12,.12SQ,20

  • Packing Method:

    TR, 7 INCH

  • RF/Microwave Device Type:

    COMBINER

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Nickel (Sn/Ag/Ni)

  • VSWR-Max:

    1.6

WP4L+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application note AN-60-014, which can be found on their website. It's essential to follow this layout to ensure optimal performance and minimize parasitic effects.
  • The WP4L+ has a 50 ohm input and output impedance. To impedance match, use a pi-network or a T-network topology with resistors and capacitors. Mini-Circuits also provides a matching circuit example in their application note AN-60-014.
  • The WP4L+ can handle up to 1W of continuous power, but it's recommended to derate the power handling based on the operating frequency and temperature. Consult the datasheet and application notes for more information.
  • Yes, the WP4L+ is designed for high-reliability applications and is available in a compact, hermetically sealed package. However, it's essential to follow proper handling and assembly procedures to ensure the device's reliability and performance.
  • Common issues with the WP4L+ include poor impedance matching, incorrect biasing, and overheating. Consult the datasheet and application notes for troubleshooting guidelines, and consider using a network analyzer to diagnose issues.
