WP4M+ - Mini-Circuits

Description: Power Divider, 4 Way-0 , 0.72 to 1.125 GHz, 50 ohms, SMT

Download WP4M+ Model

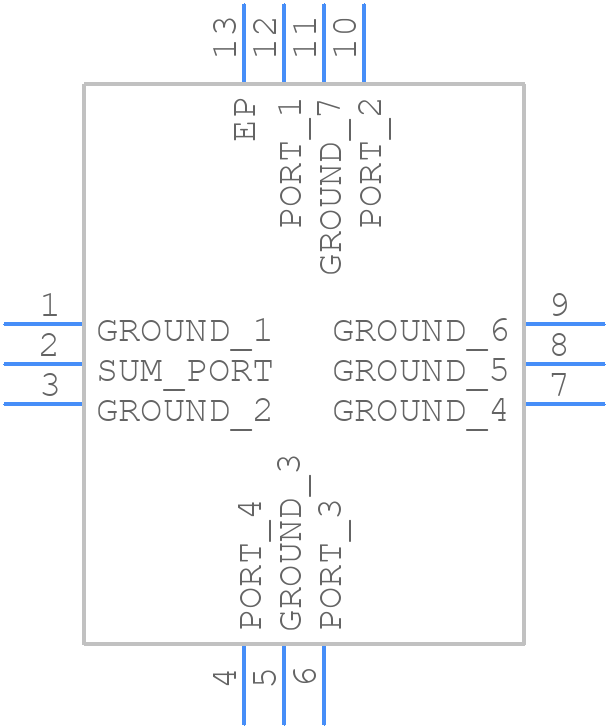

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
WP4M+ - Mini-Circuits PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - DQ1225
click to zoom
3D Models
WP4M+ - Mini-Circuits  - 3D model - Quad Flat No-Lead - DQ1225
click to zoom

WP4M+ Details

  • Manufacturer Part Number:

    WP4M+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7

  • Additional Feature:

    ISOLATION-MIN (DB):15

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    31.76 dBm

  • Insertion Loss-Max:

    1.7 dB

  • Isolation-Min:

    15 dB

  • JESD-609 Code:

    e2

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    12

  • Operating Frequency-Max:

    1125 MHz

  • Operating Frequency-Min:

    720 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC12,.12SQ,20

  • RF/Microwave Device Type:

    COMBINER

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Nickel (Sn/Ag/Ni)

  • VSWR-Max:

    1.5
