WP4N+ - Mini-Circuits

Description: Signal Conditioning PWR SPLTR CMBD / SM / RoHS

Download WP4N+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

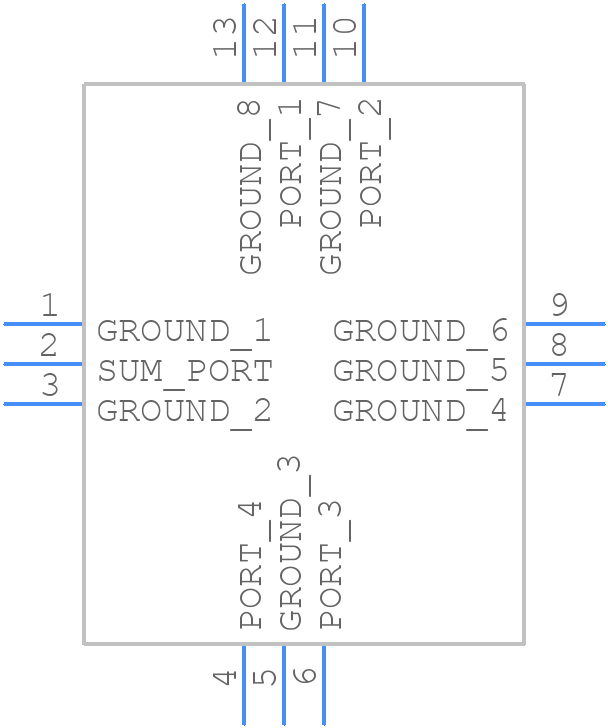

Symbol
WP4N+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
WP4N+ - Mini-Circuits PCB footprint - Other - Other - DQ1225_2024
click to zoom
3D Models
WP4N+ - Mini-Circuits - 3D model - Other - DQ1225_2024
click to zoom

WP4N+ Details

  • Manufacturer Part Number:

    WP4N+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    0

  • Additional Feature:

    ISOLATION-MIN (DB):14

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    31.76 dBm

  • Insertion Loss-Max:

    1.9 dB

  • Isolation-Min:

    14 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    12

  • Operating Frequency-Max:

    1900 MHz

  • Operating Frequency-Min:

    1215 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC12,.12SQ,20

  • RF/Microwave Device Type:

    COMBINER

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    1.5

WP4N+ Frequently Asked Questions (FAQs)

  • The maximum power handling of WP4N+ is 1 watt, but it's recommended to derate the power to 0.5 watts for continuous operation to ensure reliability and longevity.
  • The WP4N+ has a nominal impedance of 50 ohms. To impedance match, use a pi-network or a T-network with capacitors and inductors to achieve a 50-ohm impedance match. You can also use a network analyzer to optimize the match.
  • The operating temperature range of WP4N+ is -40°C to +85°C. However, it's recommended to operate within -20°C to +70°C for optimal performance and reliability.
  • Yes, WP4N+ is suitable for high-reliability applications. It's built with high-quality materials and has undergone rigorous testing to ensure its performance and reliability. However, it's essential to follow proper handling, storage, and operating procedures to maintain its reliability.
  • Use a soldering iron with a temperature of 250°C to 270°C. Apply a small amount of solder to the pad, and use a soldering technique that minimizes the thermal stress on the component. Avoid overheating or applying excessive force, which can damage the component.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

WP4N+ Overview

Use the download button to access the WP4N+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search or try a keyword search, such as RF/Microwave Splitter/Combiners

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
