WP4P1+ - Mini-Circuits

Description: Signal Conditioning 4 Ways MMIC Power Splitter, 1525 - 2375 MHz, 50?

Download WP4P1+ Model

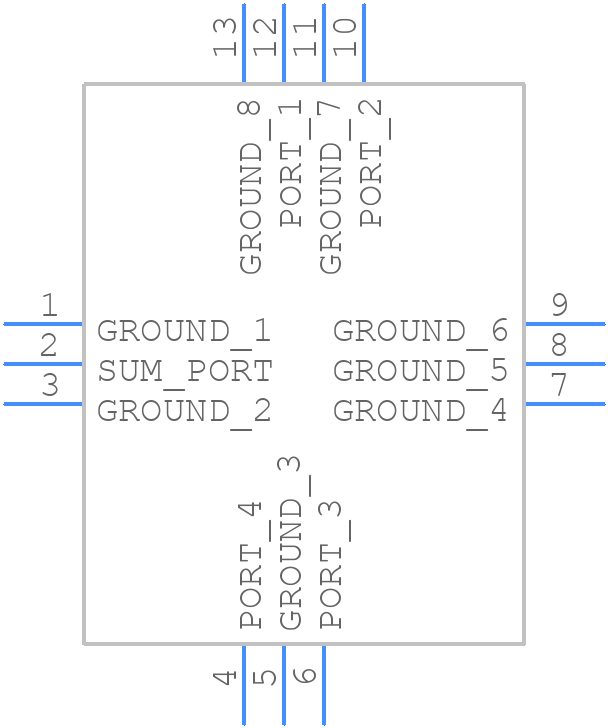

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
WP4P1+ - Mini-Circuits PCB footprint - Other - Other - WP4P1+-1
click to zoom
3D Models
WP4P1+ - Mini-Circuits  - 3D model - Other - WP4P1+-1
click to zoom

WP4P1+ Details

  • Manufacturer Part Number:

    WP4P1+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7

  • Additional Feature:

    ISOLATION-MIN (DB):15

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    31.76 dBm

  • Insertion Loss-Max:

    2 dB

  • Isolation-Min:

    15 dB

  • JESD-609 Code:

    e2

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    12

  • Operating Frequency-Max:

    2375 MHz

  • Operating Frequency-Min:

    1525 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC12,.12SQ,20

  • RF/Microwave Device Type:

    COMBINER

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Nickel (Sn/Ag/Ni)

  • VSWR-Max:

    1.4
