- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for WP4R+
- Part Number WP4R+
- Manufacturer Mini-Circuits
- Pin Count 13
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - 3 x 3mm 12-lead MCLP
- Released Date Mar 24, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
WP4R+ Details
-
Manufacturer Part Number:
WP4R+
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Malaysia
-
ECCN Code:
EAR99
-
Manufacturer:
Mini-Circuits
-
YTEOL:
7
-
Additional Feature:
ISOLATION-MIN (DB):18
-
Characteristic Impedance:
50 Ω
-
Construction:
COMPONENT
-
Input Power-Max (CW):
31.76 dBm
WP4R+ Frequently Asked Questions (FAQs)
-
Mini-Circuits provides a recommended PCB layout and footprint for WP4R+ in their application notes and evaluation board documentation. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
-
WP4R+ has a 50-ohm input and output impedance. To impedance match, use a pi-network or a T-network topology with resistors and capacitors. Mini-Circuits also provides a matching circuit design guide in their application notes.
-
The maximum power handling of WP4R+ is 1W. Exceeding this power limit can cause damage to the device. It's essential to ensure that the input power is within the specified range to maintain reliability and performance.
-
WP4R+ is rated for operation up to 85°C. While it can tolerate high temperatures, prolonged exposure above 85°C can affect its performance and reliability. If you need to operate in high-temperature environments, consider using a heat sink or thermal management system.
-
To troubleshoot WP4R+ performance issues, start by checking the input power, impedance matching, and PCB layout. Use a spectrum analyzer or network analyzer to measure the device's frequency response and identify any anomalies. Consult Mini-Circuits' application notes and technical support resources for further guidance.
Trust Checks
Community Provided
System Verified
Community Approved
WP4R+ Overview

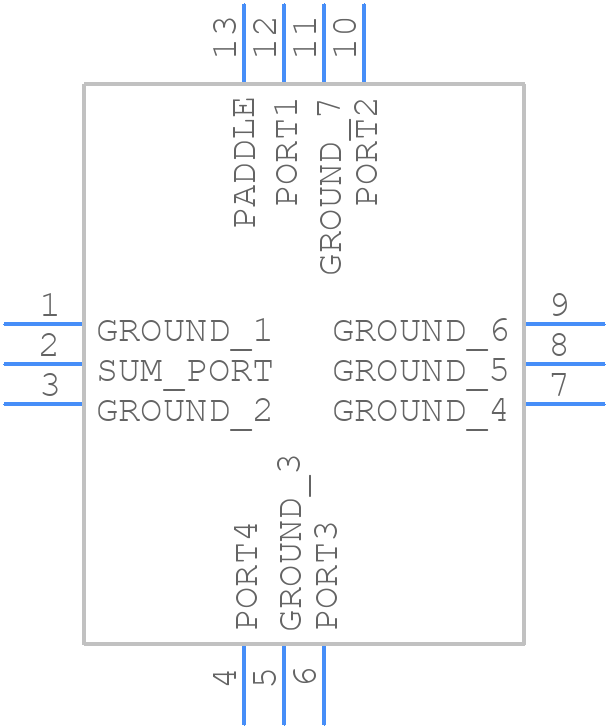

Use the download button to access the WP4R+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search
or try a keyword search, such as RF/Microwave Splitter/Combiners
