- Part Number WP4R1+
- Manufacturer Mini-Circuits
- Pin Count 13
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - WP4R1+-2
- Released Date Nov 7, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
WP4R1+ Details
-
Manufacturer Part Number:
WP4R1+
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
Manufacturer:
Mini-Circuits
-
YTEOL:
7
-
Additional Feature:
ISOLATION-MIN (DB):16
-
Characteristic Impedance:
50 Ω
-
Construction:
COMPONENT
-
Input Power-Max (CW):
31.76 dBm
-
Insertion Loss-Max:
2.1 dB
WP4R1+ Frequently Asked Questions (FAQs)
-
Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
-
The WP4R1+ has a 50 ohm input and output impedance. To impedance match, use a pi-network or a T-network topology with resistors and capacitors. Mini-Circuits also provides a matching calculator tool on their website to help with the design.
-
The maximum power handling of the WP4R1+ is 1W. Exceeding this power limit can cause damage to the device. It's essential to ensure that the input power is within the specified limit to maintain the device's reliability and performance.
-
To reduce the noise figure of the WP4R1+, ensure that the input signal is properly filtered and amplified before feeding it into the device. Additionally, use a low-noise voltage regulator to power the device, and consider using a noise-reducing component, such as a ferrite bead, in the power supply line.
-
The WP4R1+ is rated for operation up to 85°C. However, high temperatures can affect the device's performance and reliability. If you need to operate the device in a high-temperature environment, consider using a heat sink or a thermally conductive material to dissipate heat.
Trust Checks
Expert Contribution
System Verified
Community Approved
WP4R1+ Overview

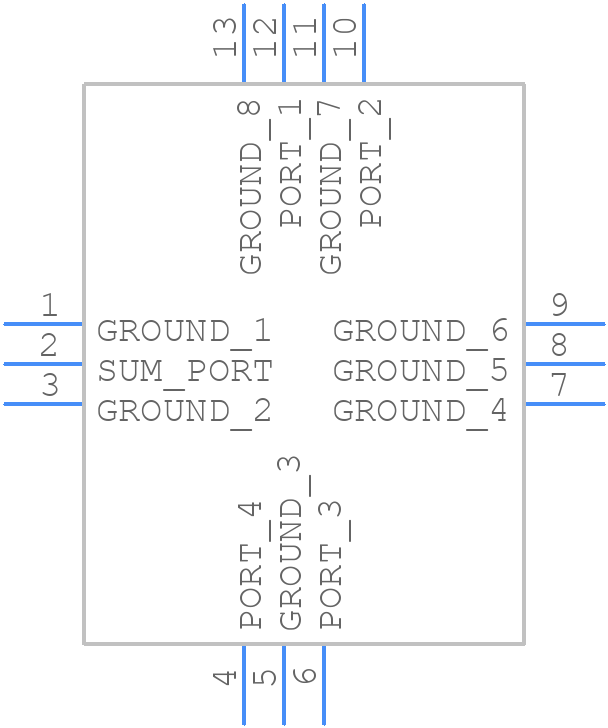

Use the download button to access the WP4R1+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like WP4R1,
or try a keyword search, such as RF/Microwave Splitter/Combiners
