WP4U+ - Mini-Circuits

Description: Signal Conditioning PWR SPLTR CMBD / SM / RoHS

Download WP4U+ Model

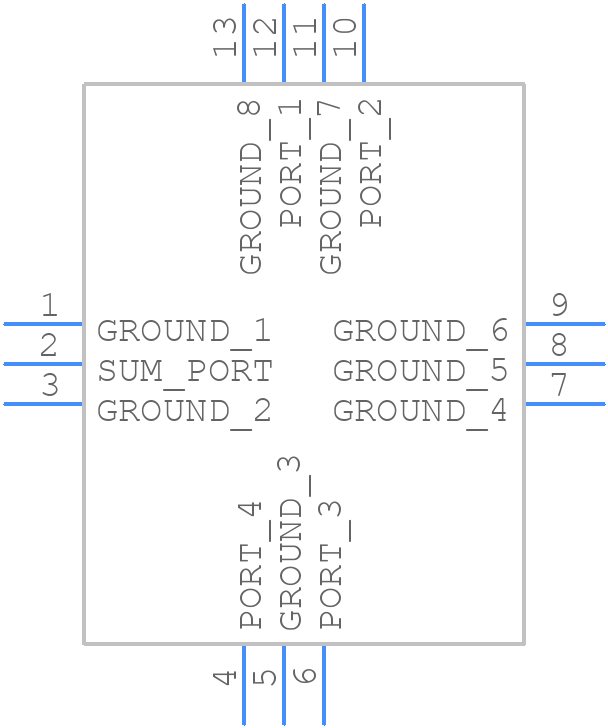

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
WP4U+ - Mini-Circuits PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN-13
click to zoom
3D Models
WP4U+ - Mini-Circuits  - 3D model - Quad Flat No-Lead - QFN-13
click to zoom

WP4U+ Details

  • Manufacturer Part Number:

    WP4U+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7

  • Additional Feature:

    ISOLATION-MIN (DB):18

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    31.76 dBm

  • Insertion Loss-Max:

    1.4 dB

  • Isolation-Min:

    18 dB

  • JESD-609 Code:

    e2

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    12

  • Operating Frequency-Max:

    2500 MHz

  • Operating Frequency-Min:

    2100 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC12,.12SQ,20

  • RF/Microwave Device Type:

    COMBINER

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Nickel (Sn/Ag/Ni)

  • VSWR-Max:

    1.35

WP4U+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application note AN-60-014, which can be found on their website. It's essential to follow this layout to ensure optimal performance and minimize parasitic effects.
  • The WP4U+ has a 50-ohm input and output impedance. To impedance match, use a pi-network or a T-network topology with resistors and capacitors. Mini-Circuits also provides a matching circuit example in their application note AN-60-014.
  • The WP4U+ can handle up to 1W of continuous power, but it's recommended to derate the power handling based on the operating frequency and temperature. Consult the datasheet and application notes for more information.
  • Yes, the WP4U+ is designed for high-reliability applications and is available in a compact, surface-mount package. However, it's essential to follow proper assembly and soldering techniques to ensure reliability and performance.
  • Start by verifying the power supply voltage, input signal level, and impedance matching. Use a spectrum analyzer or network analyzer to measure the frequency response and identify any anomalies. Consult the datasheet, application notes, and Mini-Circuits' technical support for further assistance.
