- Stock & Prices $ Price & Stock for WRA2415S-3WR2
- Part Number WRA2415S-3WR2
- Manufacturer Morunsun
- Pin Count 7
- Part Category Power Supply
- Package Category Other
- Footprint Name Other - WRA2415S-3WR2-2
- Released Date Aug 19, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
WRA2415S-3WR2 Details
-
Manufacturer Part Number:
WRA2415S-3WR2
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
Manufacturer:
MORNSUN
-
YTEOL:
6
-
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
-
Input Voltage-Max:
36 V
-
Input Voltage-Min:
18 V
-
Input Voltage-Nom:
24 V
-
Number of Functions:
1
WRA2415S-3WR2 Frequently Asked Questions (FAQs)
-
The maximum capacitive load is not explicitly stated in the datasheet, but as a general rule of thumb, it's recommended to keep the output capacitance below 10uF to ensure stability. However, it's best to consult with MORNSUN's technical support for specific guidance.
-
While the datasheet specifies an operating temperature range of -40°C to 85°C, the converter's performance and reliability may degrade at high temperatures. It's recommended to derate the output power and consult with MORNSUN's technical support for specific guidance on high-temperature applications.
-
The WRA2415S-3WR2 meets various safety certifications, including UL60950-1, IEC60950-1, and EN60950-1. However, it's essential to ensure that the converter is used within its specified operating conditions and that the system design meets the required safety standards. Consult with MORNSUN's technical support and a qualified safety engineer to ensure compliance.
-
MORNSUN provides a recommended PCB layout and thermal management guidelines in their application notes. It's essential to follow these guidelines to ensure proper heat dissipation, minimize electromagnetic interference, and optimize the converter's performance.
-
While the WRA2415S-3WR2 can be used in a redundant or parallel configuration, it's essential to consult with MORNSUN's technical support to ensure that the system design meets the required specifications and safety standards. Additional components, such as ORing diodes or power switches, may be required to ensure proper operation.
Trust Checks
Expert Contribution
System Verified
Community Approved
WRA2415S-3WR2 Overview

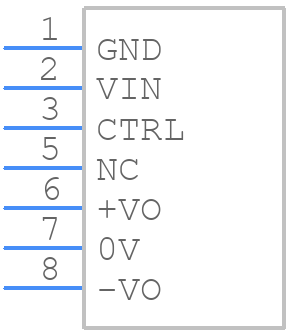

Use the download button to access the WRA2415S-3WR2 schematic symbol, PCB footprint, and 3D model.
