MORNSUN recommends a multi-layer PCB with a solid ground plane, and thermal vias under the module to dissipate heat. A minimum clearance of 5mm around the module is recommended for airflow and heat dissipation.
MORNSUN recommends derating the output power by 2.5% per degree Celsius above 40°C, and ensuring good airflow around the module. Additionally, using a thermal interface material between the module and the PCB can improve heat dissipation.
MORNSUN recommends a maximum output capacitance of 220uF to prevent oscillation and ensure stability. Exceeding this value may cause the module to malfunction or oscillate.
Yes, the WRB1203S-3WR2 can be used in a redundant or parallel configuration, but MORNSUN recommends using a dedicated ORing diode or a redundancy module to ensure proper operation and prevent back-feeding.
The WRB1203S-3WR2 will shut down during an input voltage brownout or dropout, and will automatically recover when the input voltage returns to a valid range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
WRB1203S-3WR2 Overview

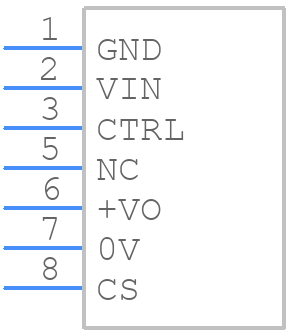

Use the download button to access the WRB1203S-3WR2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like WRB12,
or try a keyword search, such as Power Supply Modules
