MORNSUN recommends a multi-layer PCB with a solid ground plane, and thermal vias under the module to dissipate heat. A minimum clearance of 5mm around the module is also recommended for airflow and heat dissipation.
MORNSUN recommends derating the output power by 2.5% per degree Celsius above 40°C, and ensuring good airflow around the module. Additionally, using a thermal interface material between the module and the PCB can help improve heat dissipation.
MORNSUN recommends a maximum output capacitance of 220uF to prevent oscillation and ensure stability. However, the actual capacitance limit may vary depending on the specific application and layout.
Yes, the WRB1215S-3WR2 can be used in a redundant or parallel configuration, but MORNSUN recommends consulting their application notes and performing thorough testing to ensure reliable operation and to prevent potential issues such as current imbalance or oscillation.
MORNSUN reports a typical MTBF of 1.5 million hours for the WRB1215S-3WR2, calculated according to MIL-HDBK-217F. However, actual MTBF may vary depending on the specific application, operating conditions, and quality of the PCB and components.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
WRB1215S-3WR2 Overview

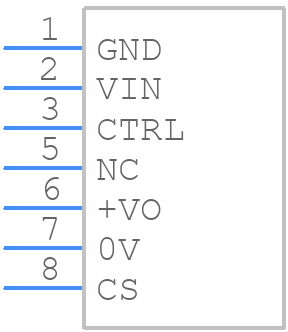

Use the download button to access the WRB1215S-3WR2 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like WRB12,
or try a keyword search, such as Power Supply Modules
