WS2814C - Worldsemi

Description: Signal line 256 Graylevel 4-channelConstant current LED driver IC, Good color consistency and cost effective.

Download WS2814C Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this WS2814C model

Email notifications will be applied after download.

Send part feedback

Symbol

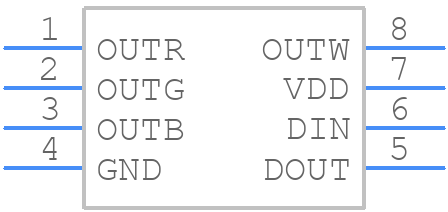

WS2814C - Worldsemi - PCB symbol

PCB Footprints

WS2814C - Worldsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOP-8_2026

3D Models

WS2814C - Worldsemi - 3D model - Small Outline Packages - SOP-8_2026

Datasheet Download Datasheet
Stock & Prices Price & Stock for WS2814C
Part Number WS2814C
Manufacturer Worldsemi
Pin Count 8
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - SOP-8_2026
Released Date Feb 15, 2026
Last Modified Date Feb 15, 2026 3:04 PM UTC
