WSBS8518L2500JK - Vishay

Description: Current Sense Resistors - Through Hole 36watt 250 micro-ohm 5% Battery Shunt

Download WSBS8518L2500JK Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
WSBS8518L2500JK - Vishay - PCB symbol
click to zoom
PCB Footprints

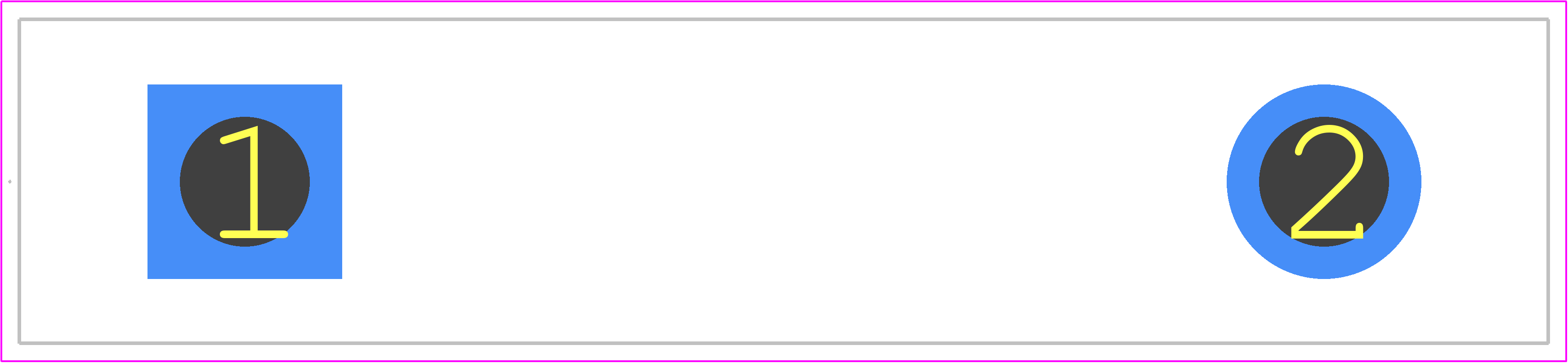

WSBS8518L2500JK - Vishay PCB footprint - Other - Other - WSBS8518L2500JK-7
click to zoom
3D Models
WSBS8518L2500JK - Vishay - 3D model - Other - WSBS8518L2500JK-7
click to zoom

WSBS8518L2500JK Details

  • Manufacturer Part Number:

    WSBS8518L2500JK

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.29.00.00

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    6.3

  • Construction:

    Rectangular

  • Mounting Feature:

    CHASSIS MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    170 °C

  • Operating Temperature-Min:

    -65 °C

  • Package Height:

    3 mm

  • Package Length:

    85 mm

  • Package Style:

    Chassis Mount

  • Package Width:

    18 mm

  • Packing Method:

    BULK

  • Rated Power Dissipation (P):

    36 W

  • Rated Temperature:

    70 °C

  • Reference Standard:

    AEC-Q200

  • Resistance:

    0.00025 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Surface Mount:

    NO

  • Technology:

    METAL STRIP

  • Temperature Coefficient:

    110 ppm/°C

  • Terminal Shape:

    LUG

  • Tolerance:

    5%

WSBS8518L2500JK Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for WSBS8518L2500JK is 260°C (500°F) for 10 seconds, with a peak temperature of 280°C (536°F) for 5 seconds.
  • Yes, WSBS8518L2500JK is resistant to sulfurization due to its passivation layer, which protects the resistor from sulfur-containing atmospheres.
  • Yes, WSBS8518L2500JK is suitable for high-frequency applications up to several hundred MHz due to its thin-film construction and low inductance.
  • The power rating of WSBS8518L2500JK decreases with increasing temperature. At 125°C, the power rating is 1.25 W, and at 150°C, it is 0.75 W.
  • Yes, WSBS8518L2500JK is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
