The recommended PCB footprint for the WSBS8518L2500JK20 is a rectangular pad with dimensions of 5.5mm x 2.5mm, with a thermal pad of 2.5mm x 2.5mm in the center. The pad should have a solder mask defined (SMD) and a non-solder mask defined (NSMD) area around the thermal pad.
To ensure reliable soldering, use a soldering iron with a temperature range of 250°C to 260°C, and a solder with a melting point of 217°C to 220°C. Apply a small amount of solder paste to the PCB pads, and use a reflow oven or a hot air gun to solder the component. Avoid using excessive solder or flux, as it can cause bridging or shorts.
The maximum operating temperature range for the WSBS8518L2500JK20 is -55°C to 150°C. However, the device's performance and reliability may degrade if operated at temperatures above 125°C for extended periods.
The WSBS8518L2500JK20 is not designed for use in high-humidity environments. It is recommended to use the device in environments with a relative humidity of 60% or less. If the device is exposed to high humidity, it may be susceptible to moisture-related failures or corrosion.
The WSBS8518L2500JK20 is an ESD-sensitive device. To prevent ESD damage, handle the device with ESD-protective equipment, such as wrist straps, mats, or bags. Ensure that the PCB and components are properly grounded, and avoid touching the device's pins or leads during handling or assembly.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
WSBS8518L2500JK20 Overview

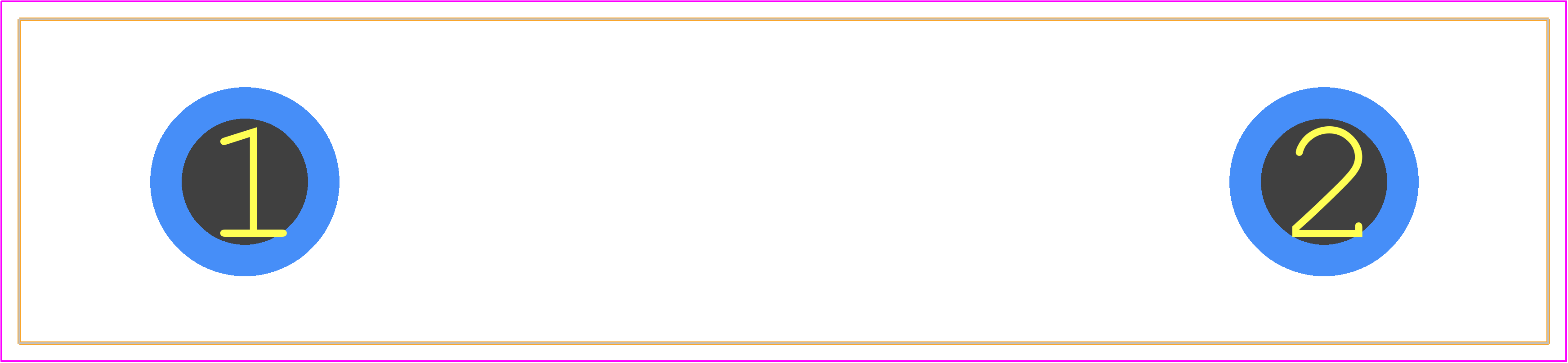

Use the download button to access the WSBS8518L2500JK20 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like WSBS8,
or try a keyword search, such as Metal Strip Resistor
