X18CBGWA1D7Y1022 - XKB Connectivity

Description: RJ JACK CONNECTOR, 125 VOLTS AC, 1.5AMP

Download X18CBGWA1D7Y1022 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this X18CBGWA1D7Y1022 model

Email notifications will be applied after download.

Send part feedback

Symbol

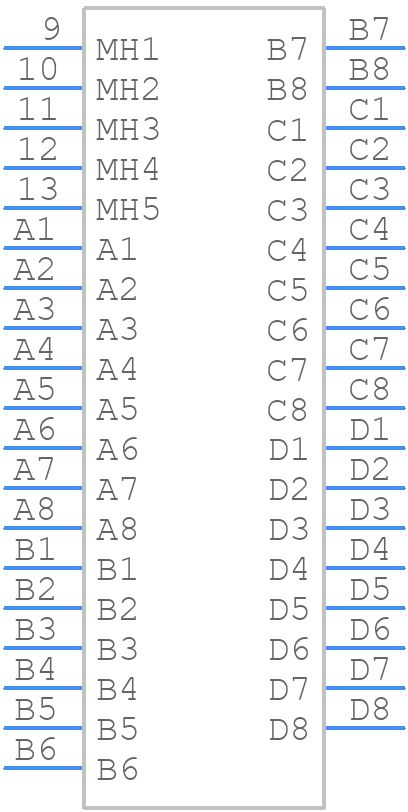

X18CBGWA1D7Y1022 - XKB Connectivity - PCB symbol

PCB Footprints

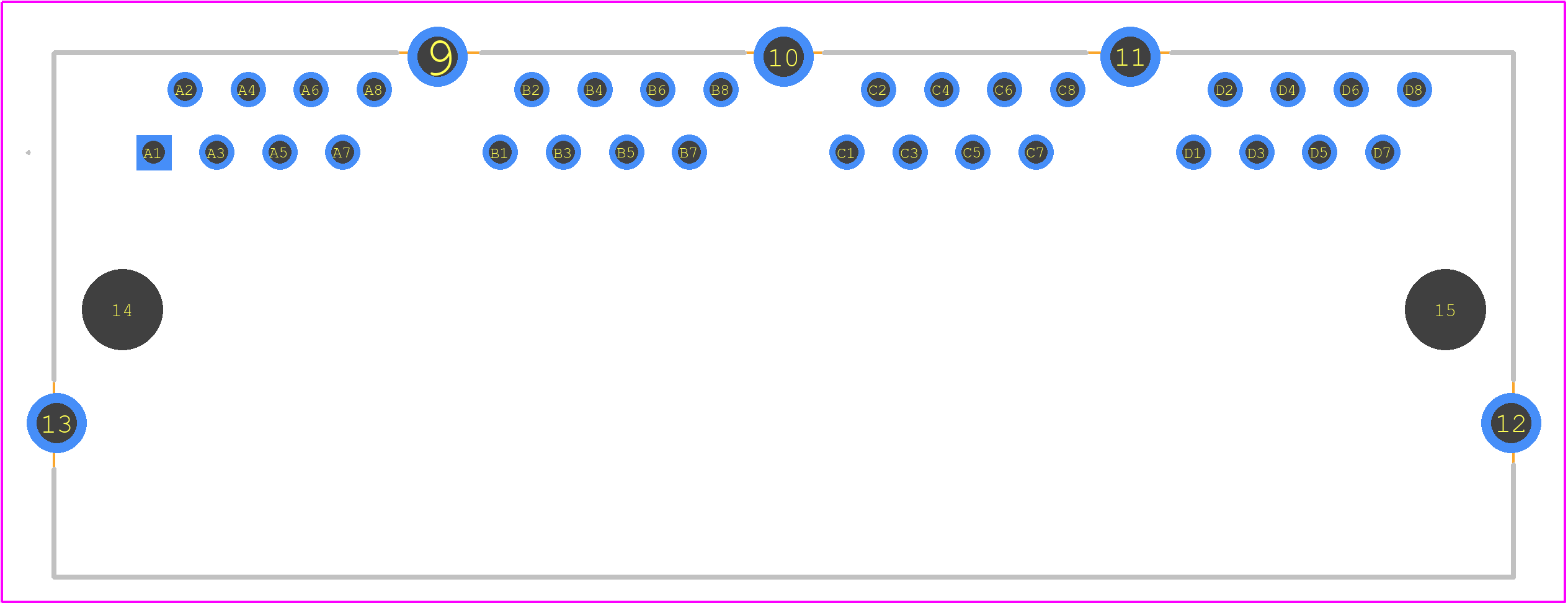

X18CBGWA1D7Y1022 - XKB Connectivity PCB footprint - Other - Other - X18CBGWA1D7Y1022-4

3D Models

X18CBGWA1D7Y1022 - XKB Connectivity - 3D model - Other - X18CBGWA1D7Y1022-4

Datasheet Download Datasheet
Stock & Prices Price & Stock for X18CBGWA1D7Y1022
Part Number X18CBGWA1D7Y1022
Manufacturer XKB Connectivity
Pin Count 37
Part Category Connector
Package Category Other
Footprint Name Other - X18CBGWA1D7Y1022-4
Released Date Sep 7, 2024
Last Modified Date Sep 7, 2024 3:14 PM UTC
Pinout / Pin List Click Here (Member Only)

X18CBGWA1D7Y1022 Details

Manufacturer Part Number:
X18CBGWA1D7Y1022
Manufacturer:
XKB Connectivity

Trust Checks

Community Provided

System Verified

Community Approved

X18CBGWA1D7Y1022 Overview

Use the download button to access the X18CBGWA1D7Y1022 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like X18CB, or try a keyword search, such as Quartz Crystals
