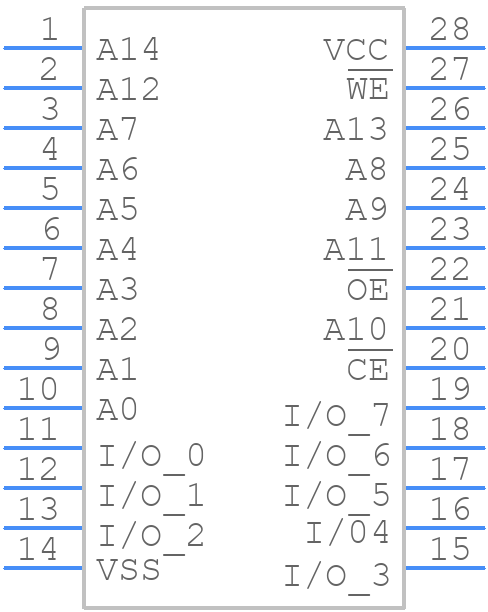

X28C256D footprint, schematic symbol and 3D model by Renesas Electronics

Symbol

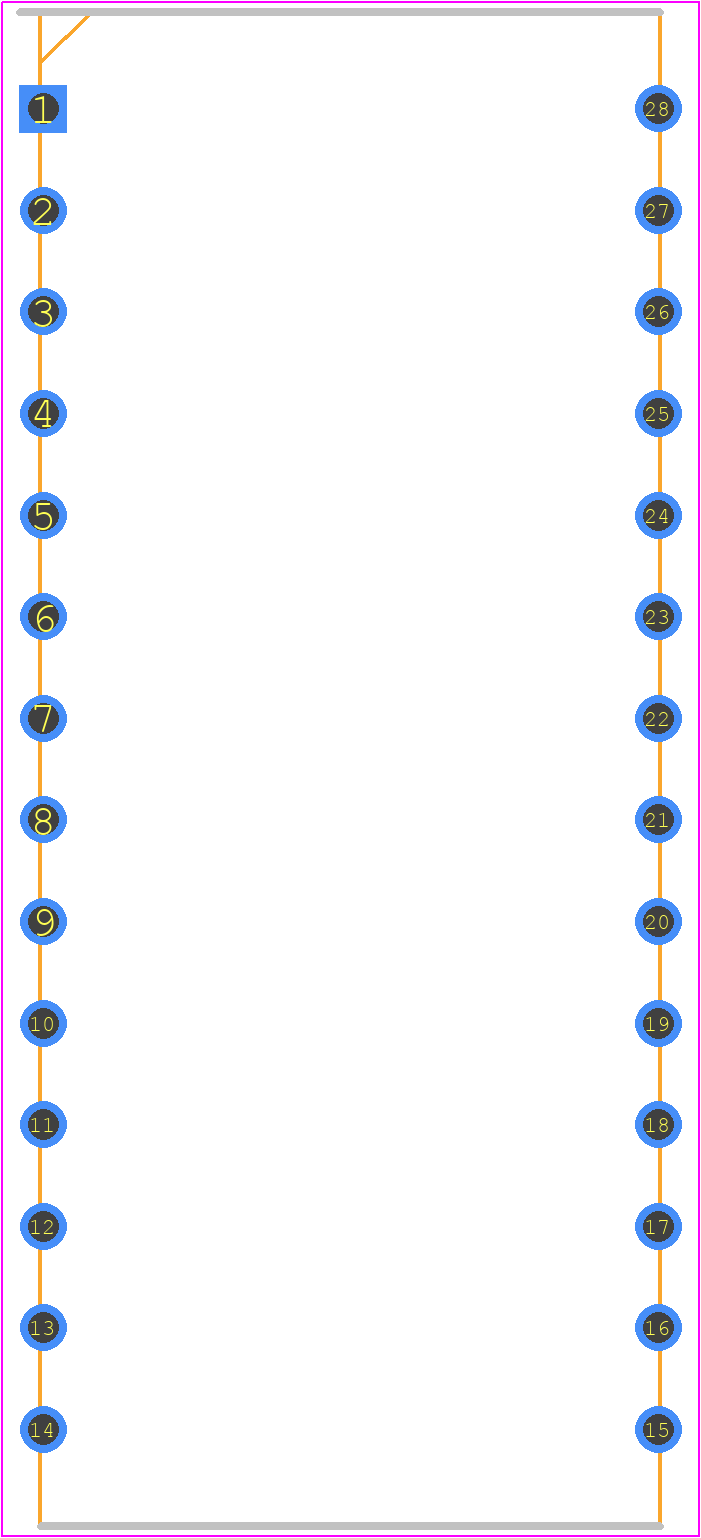

PCB Footprints

Datasheet Download Datasheet
Stock & Prices Price & Stock for X28C256D
Part Number X28C256D
Manufacturer Renesas Electronics
Pin Count 28
Part Category Integrated Circuit
Package Category Ceramic Dual-In-Line Packages
Footprint Name Ceramic Dual-In-Line Packages - 28-LEAD HERMETIC DUAL IN-LINE PACKAGE TYPE D
Released Date Apr 1, 2021
Last Modified Date Oct 24, 2023 7:30 PM UTC
Pinout / Pin List Click Here (Member Only)

X28C256D Details

Community Provided

System Verified

Community Approved

Use the download button to access the X28C256D schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like X28C2, or try a keyword search, such as EEPROMs
