X9015US8Z-2.7 - Renesas Electronics

Description: The Intersil X9015 is a 32 tap potentiometer that is volatile. The device consists of a string of 31 resistors that can be programmed to connect the RW/VW wiper output with any of the nodes between the connecting resistors. The connection point of the wiper is determined by information communicated to the device on the 3-wire port. The 3-wire port changes the tap position by a falling edge on the increment pin. The direction the wiper moves is determined by the state of the up/down pin. The wiper position a

Download X9015US8Z-2.7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

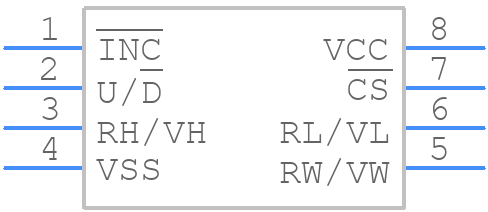

X9015US8Z-2.7 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
X9015US8Z-2.7 - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - M8.15-ren4
click to zoom
3D Models
X9015US8Z-2.7 - Renesas Electronics - 3D model - Small Outline Packages - M8.15-ren4
click to zoom

X9015US8Z-2.7 Details

  • Manufacturer Part Number:

    X9015US8Z-2.7

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOICN

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    M8.15

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    MATTE TIN

  • Time@Peak Reflow Temperature-Max (s):

    30

X9015US8Z-2.7 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the X9015US8Z-2.7 is -40°C to +85°C.
  • The power-up sequence for the X9015US8Z-2.7 should follow the recommended sequence in the datasheet: VCC, then VCAP, and finally VIN. This ensures proper initialization and prevents damage to the device.
  • The maximum allowed voltage on the VIN pin is 6.5V. Exceeding this voltage may damage the device.
  • To configure the X9015US8Z-2.7 for low-power mode, set the SHDN pin to a logic low level. This will reduce the power consumption of the device.
  • The VCAP pin is used to connect a capacitor that filters the output voltage of the internal voltage regulator. This capacitor helps to reduce noise and improve the overall stability of the device.
