Description:The X9221A integrates two digitally controlled potentiometers (XDCP) on a monolithic CMOS integrated microcircuit. The digitally controlled potentiometer is implemented using 63 resistive elements in a series array. Between each element are tap points connected to the wiper terminal through switches. The position of the wiper on the array is controlled by the user through the 2-wire bus interface. Each potentiometer has associated with it a volatile Wiper Counter Register (WCR) and 2 nonvolatile Data Regist
Renesas provides a recommended PCB layout guide in their application notes (e.g., AN1469) and evaluation board documentation. It's essential to follow these guidelines to ensure proper thermal management, noise reduction, and signal integrity.
The X9221AWSIZT1 has built-in error detection mechanisms, such as CRC and parity checks. Engineers can use these features to detect errors and implement custom error handling routines. Renesas also provides example code and application notes to help with fault detection and error handling implementation.
The X9221AWSIZT1 has a maximum junction temperature of 150°C. Engineers should ensure proper heat dissipation by using thermal vias, heat sinks, and thermal interface materials. Renesas provides thermal management guidelines in their datasheet and application notes.
The X9221AWSIZT1 is designed to operate in harsh environments, but it's essential to follow Renesas' guidelines for vibration and shock testing. Engineers should also consider using additional mechanical protection, such as conformal coating or potting, to ensure reliability in extreme environments.
The X9221AWSIZT1 has various power-saving modes, such as sleep and standby modes. Engineers can optimize power consumption by using these modes, reducing clock frequencies, and minimizing I/O activity. Renesas provides power consumption guidelines and optimization techniques in their application notes.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
X9221AWSIZT1 Overview

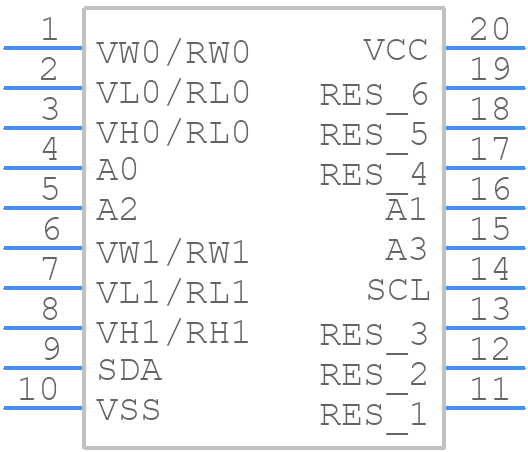

Use the download button to access the X9221AWSIZT1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like X9221,
or try a keyword search, such as Digital Potentiometers
