X9241AMSIZ - Renesas Electronics

Description: The X9241A integrates four digitally controlled potentiometers (XDCP) on a monolithic CMOS integrated microcircuit. The digitally controlled potentiometer is implemented using 63 resistive elements in a series array. Between each element are tap points connected to the wiper terminal through switches. The position of the wiper on the array is controlled by the user through the 2-wire bus interface. Each potentiometer has associated with it a volatile Wiper Counter Register (WCR) and 4 nonvolatile Data Regis

Download X9241AMSIZ Model

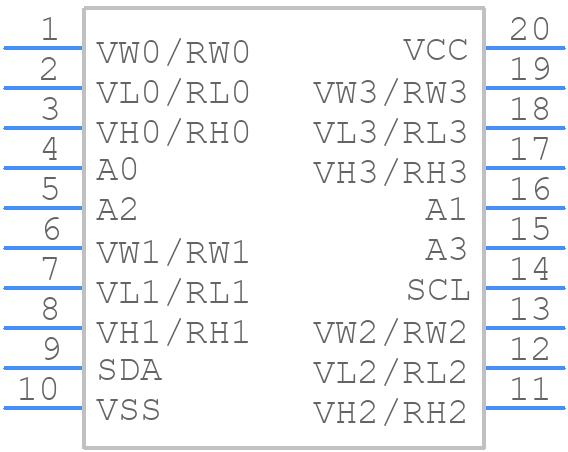

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
X9241AMSIZ - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - MDP0027-1
click to zoom
3D Models
X9241AMSIZ - Renesas Electronics  - 3D model - Small Outline Packages - MDP0027-1
click to zoom

X9241AMSIZ Details

  • Manufacturer Part Number:

    X9241AMSIZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOICW

  • Pin Count:

    20

  • Manufacturer Package Code:

    M20.3

  • Country Of Origin:

    Malaysia, Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    5

  • Additional Feature:

    REST 3 RESISTOR ARRAY VALUES ARE : 2000, 10000, 10000 OHMS

  • Control Interface:

    2-WIRE SERIAL

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    12.802 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    4

  • Number of Positions:

    64

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Resistance Law:

    LINEAR

  • Resistance Tolerance-Max:

    20%

  • Resistor Terminal Voltage-Max:

    5 V

  • Resistor Terminal Voltage-Min:

    -3 V

  • Seated Height-Max:

    2.641 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Coefficient-Nom:

    300 ppm/°C

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Resistance-Nom:

    50000 Ω

  • Width:

    7.493 mm

X9241AMSIZ Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (AP-AN-1143) which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The X9241AMSIZ has built-in error detection mechanisms such as CRC and parity checks. Engineers can implement fault detection by monitoring the device's status registers and error flags. Additionally, Renesas provides example code and application notes (e.g., AP-AN-1144) that demonstrate error handling and fault detection techniques.
  • While the datasheet specifies an operating temperature range of -40°C to 85°C, Renesas recommends derating the device's performance at extreme temperatures. Engineers should consult the device's reliability report (Renesas document number: R00EU0074EJ0100) for detailed information on temperature derating and reliability.
  • Renesas provides guidelines for EMC design and testing in their application note (AP-AN-1145). Engineers should follow these guidelines to ensure the device meets EMC standards and regulations. Additionally, they should consider using shielding, filtering, and grounding techniques to minimize electromagnetic interference.
  • Renesas recommends a specific power-up and power-down sequence to ensure proper device operation and prevent damage. Engineers should consult the device's application note (AP-AN-1142) for detailed information on power sequencing and voltage ramp-up/ramp-down requirements.
