X9241AMVZ - Renesas Electronics

Description: The X9241A integrates four digitally controlled potentiometers (XDCP) on a monolithic CMOS integrated microcircuit. The digitally controlled potentiometer is implemented using 63 resistive elements in a series array. Between each element are tap points connected to the wiper terminal through switches. The position of the wiper on the array is controlled by the user through the 2-wire bus interface. Each potentiometer has associated with it a volatile Wiper Counter Register (WCR) and 4 nonvolatile Data Regis

Download X9241AMVZ Model

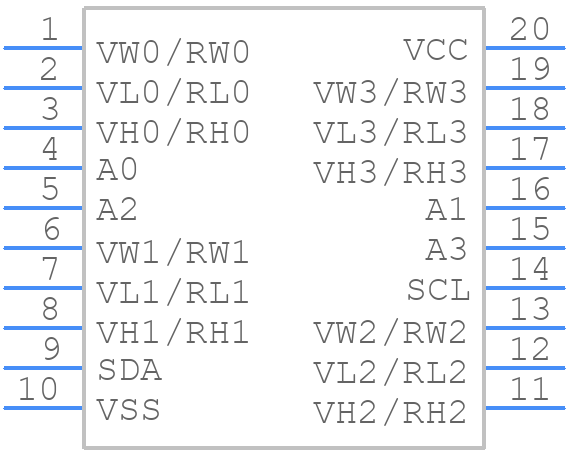

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
X9241AMVZ - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - MDP0044 _
click to zoom
3D Models
X9241AMVZ - Renesas Electronics  - 3D model - Small Outline Packages - MDP0044 _
click to zoom

X9241AMVZ Details

  • Manufacturer Part Number:

    X9241AMVZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    20

  • Manufacturer Package Code:

    MDP0044

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    5

  • Additional Feature:

    REST 3 RESISTOR ARRAY VALUES ARE : 2000, 10000, 10000 OHMS

  • Control Interface:

    2-WIRE SERIAL

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    4

  • Number of Positions:

    64

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Resistance Law:

    LINEAR

  • Resistance Tolerance-Max:

    20%

  • Resistor Terminal Voltage-Max:

    5 V

  • Resistor Terminal Voltage-Min:

    -3 V

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Coefficient-Nom:

    300 ppm/°C

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Resistance-Nom:

    50000 Ω

  • Width:

    4.4 mm

X9241AMVZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the X9241AMVZ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane to reduce noise and EMI.
  • To ensure reliable communication, use a dedicated I2C bus with pull-up resistors, and implement error checking and retry mechanisms in your firmware. Also, make sure to follow the I2C protocol specifications and avoid bus contention.
  • The X9241AMVZ is rated for operation from -40°C to +125°C, but it's recommended to operate within the -20°C to +85°C range for optimal performance and reliability.
  • The X9241AMVZ has a built-in brown-out detection circuit, but it's recommended to implement an external brown-out detection circuit with a voltage supervisor IC to ensure reliable reset and power-on reset functionality.
  • Use 10uF to 22uF ceramic capacitors with a voltage rating of 10V or higher, placed as close as possible to the device's power pins. Additionally, use a 100nF to 1uF capacitor in parallel to filter high-frequency noise.
