Description:The X9241A integrates four digitally controlled potentiometers (XDCP) on a monolithic CMOS integrated microcircuit. The digitally controlled potentiometer is implemented using 63 resistive elements in a series array. Between each element are tap points connected to the wiper terminal through switches. The position of the wiper on the array is controlled by the user through the 2-wire bus interface. Each potentiometer has associated with it a volatile Wiper Counter Register (WCR) and 4 nonvolatile Data Regis
Renesas provides a recommended PCB layout guide in their application note (AP-AN-1143) which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The X9241AWVIZT1 has built-in error detection mechanisms such as CRC and parity checks. Engineers can implement fault detection and error handling by monitoring the device's status registers and responding to error flags. Renesas provides example code and application notes to help with implementation.
Renesas recommends a specific power-up and power-down sequence to ensure proper device operation and prevent damage. This sequence is outlined in the datasheet and application notes, and includes steps such as powering up the voltage regulator before the device, and powering down the device before the voltage regulator.
To optimize power consumption, engineers can use the device's power-saving modes, adjust the clock frequency, and minimize the use of unnecessary peripherals. Renesas provides power consumption estimates and guidelines in the datasheet and application notes to help with optimization.
The X9241AWVIZT1 has a maximum junction temperature of 150°C. Engineers should ensure proper thermal management by providing adequate heat sinking, using thermal interface materials, and following Renesas' guidelines for thermal design and layout.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
X9241AWVIZT1 Overview

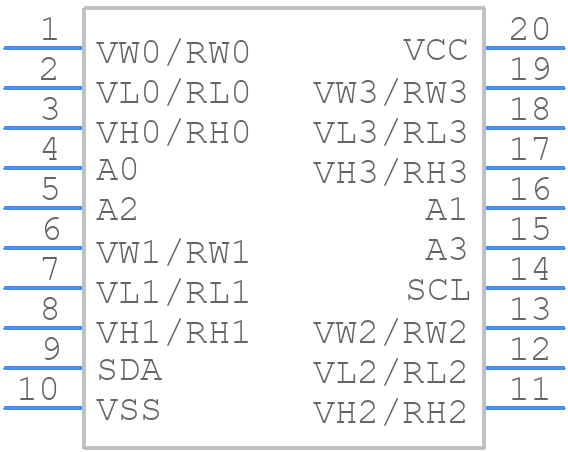

Use the download button to access the X9241AWVIZT1 schematic symbol, PCB footprint, and 3D model.
