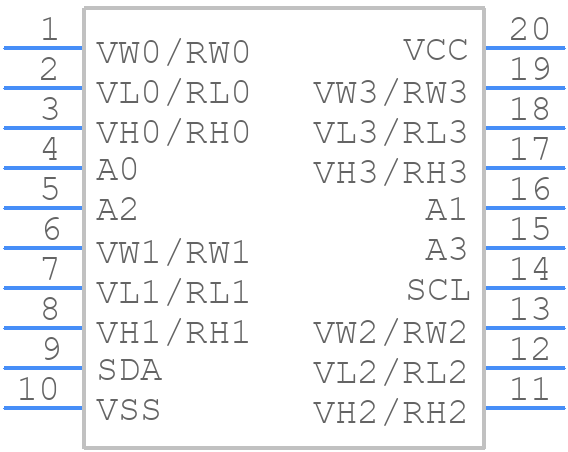

X9241AWVZ - Renesas Electronics

X9241AWVZ Details

• Manufacturer Part Number:

  X9241AWVZ

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  TSSOP

• Pin Count:

  20

• Manufacturer Package Code:

  MDP0044

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  18 Weeks

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  5

• Additional Feature:

  REST 3 RESISTOR ARRAY VALUES ARE : 10000 OHMS

• Control Interface:

  2-WIRE SERIAL

• Converter Type:

  DIGITAL POTENTIOMETER

• JESD-30 Code:

  R-PDSO-G20

• JESD-609 Code:

  e3

• Length:

  6.5 mm

• Moisture Sensitivity Level:

  3

• Number of Functions:

  4

• Number of Positions:

  64

• Number of Terminals:

  20

• Operating Temperature-Max:

  70 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSSOP

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Resistance Law:

  LINEAR

• Resistance Tolerance-Max:

  20%

• Resistor Terminal Voltage-Max:

  5 V

• Resistor Terminal Voltage-Min:

  -3 V

• Seated Height-Max:

  1.2 mm

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Coefficient-Nom:

  300 ppm/°C

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Total Resistance-Nom:

  10000 Ω

• Width:

  4.4 mm
