X9241AWVZT1 - Renesas Electronics

Description: The X9241A integrates four digitally controlled potentiometers (XDCP) on a monolithic CMOS integrated microcircuit. The digitally controlled potentiometer is implemented using 63 resistive elements in a series array. Between each element are tap points connected to the wiper terminal through switches. The position of the wiper on the array is controlled by the user through the 2-wire bus interface. Each potentiometer has associated with it a volatile Wiper Counter Register (WCR) and 4 nonvolatile Data Regis

Download X9241AWVZT1 Model

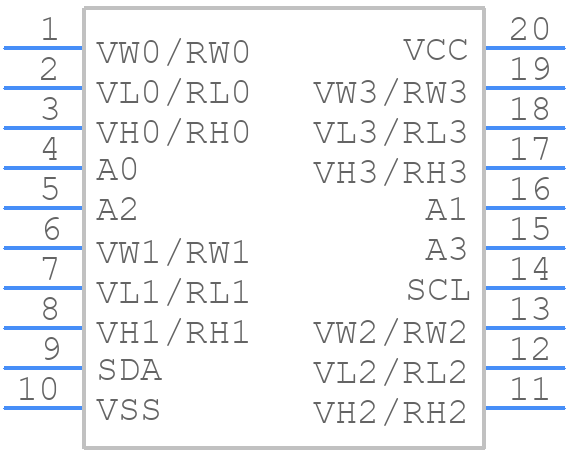

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
X9241AWVZT1 - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - MDP0044
click to zoom
3D Models
X9241AWVZT1 - Renesas Electronics  - 3D model - Small Outline Packages - MDP0044
click to zoom

X9241AWVZT1 Details

  • Manufacturer Part Number:

    X9241AWVZT1

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    MDP0044

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    5

  • Additional Feature:

    REST 3 RESISTOR ARRAY VALUES ARE : 10000 OHMS

  • Control Interface:

    2-WIRE SERIAL

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    4

  • Number of Positions:

    64

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Resistance Law:

    LINEAR

  • Resistance Tolerance-Max:

    20%

  • Resistor Terminal Voltage-Max:

    5 V

  • Resistor Terminal Voltage-Min:

    -3 V

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Coefficient-Nom:

    300 ppm/°C

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Resistance-Nom:

    10000 Ω

  • Width:

    4.4 mm

X9241AWVZT1 Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (AP-144) for the X9241A series. It's essential to follow this guide to ensure optimal performance, especially for high-frequency signals.
  • The X9241AWVZT1 has an internal POR and BOR circuit. To handle these, ensure a stable power supply, use a capacitor to filter the power supply voltage, and consider adding an external reset circuit if necessary. Refer to the datasheet and application notes for more information.
  • The X9241AWVZT1 can use an external clock source or its internal oscillator. For optimal performance, use a high-quality external clock source, such as a crystal oscillator or a clock generator IC. Ensure the clock signal meets the device's specifications and is properly decoupled.
  • The WDT is used to detect and recover from system malfunctions. To implement the WDT, configure the WDT register, set the timeout period, and ensure the WDT is periodically reset by the system software. Refer to the datasheet and application notes for more information.
  • The X9241AWVZT1 has a maximum junction temperature of 150°C. Ensure proper thermal management by using a heat sink, thermal vias, and a thermally conductive PCB material. Also, consider the device's power consumption and thermal resistance when designing the system.
