X9258UV24IZ - Renesas Electronics

Description: The X9258 integrates 4 digitally controlled potentiometers (XDCP™) on a monolithic CMOS integrated circuit. The digitally controlled potentiometer is implemented using 255 resistive elements in a series array. Between each element are tap points connected to the wiper terminal through switches. The position of the wiper on the array is controlled by the user through the 2-wire bus interface. Each potentiometer has associated with it a volatile Wiper Counter Register (WCR) and 4 non-volatile Data Registers (

Download X9258UV24IZ Model

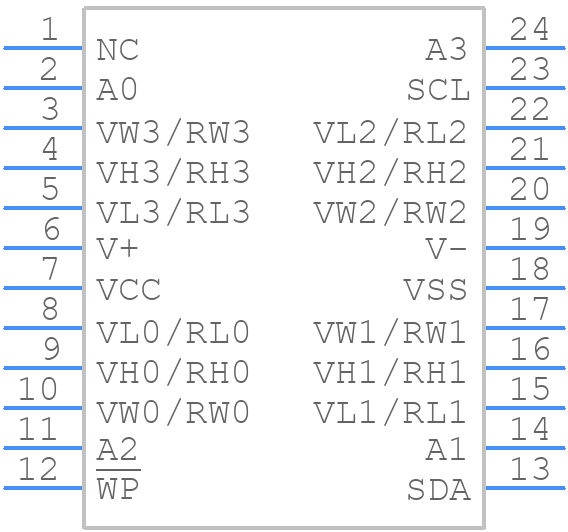

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
X9258UV24IZ - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - (TSSOP)24
click to zoom
3D Models
X9258UV24IZ - Renesas Electronics  - 3D model - Small Outline Packages - (TSSOP)24
click to zoom

X9258UV24IZ Details

  • Manufacturer Part Number:

    X9258UV24IZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    M24.173

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    7

  • Control Interface:

    2-WIRE SERIAL

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    7.8 mm

  • Moisture Sensitivity Level:

    5

  • Number of Functions:

    4

  • Number of Positions:

    256

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Resistance Law:

    LINEAR

  • Resistance Tolerance-Max:

    20%

  • Resistor Terminal Voltage-Max:

    5.5 V

  • Resistor Terminal Voltage-Min:

    -5.5 V

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Coefficient-Nom:

    300 ppm/°C

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Resistance-Nom:

    50000 Ω

  • Width:

    4.4 mm

X9258UV24IZ Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the X9258UV24IZ is -40°C to +85°C, as specified in the datasheet. However, it's essential to note that the device can operate at a wider temperature range, but with reduced performance and reliability.
  • To properly handle POR and BOR, ensure that the power supply voltage (VCC) rises monotonically during power-up, and the voltage supervisor (VSV) is enabled. Also, make sure to follow the recommended power-up sequence and timing in the datasheet.
  • The X9258UV24IZ supports a maximum clock frequency of 24 MHz, as specified in the datasheet. However, it's essential to consider the clock frequency tolerance, clock skew, and clock jitter when designing your system.
  • The WDT can be configured using the WDT control register. Recommended settings include enabling the WDT, setting the timeout period, and configuring the WDT clock source. It's essential to follow the datasheet guidelines and consider the system's specific requirements.
  • When using the X9258UV24IZ in a low-power or battery-powered application, consider the device's power consumption, power-down modes, and wake-up times. Also, ensure that the system design minimizes power consumption during idle periods and uses power-saving features like sleep modes and clock gating.
