X9259US24IZ - Renesas Electronics

Description: Digital Potentiometer ICs QD DCP 50KOHM 256 TAPS 2-WIRE

Download X9259US24IZ Model

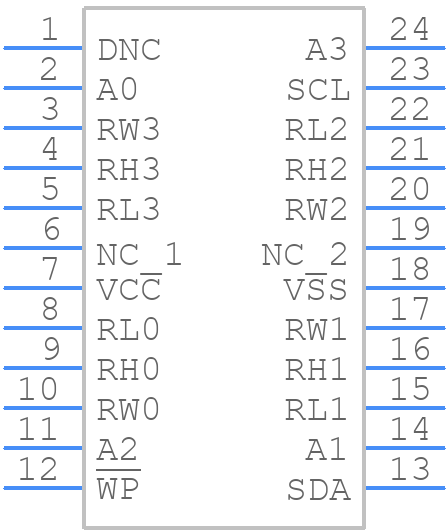

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
X9259US24IZ - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - M24.3
click to zoom
3D Models
X9259US24IZ - Renesas Electronics  - 3D model - Small Outline Packages - M24.3
click to zoom

X9259US24IZ Details

  • Manufacturer Part Number:

    X9259US24IZ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SOIC-24

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-609 Code:

    e3

  • Peak Reflow Temperature (Cel):

    250

  • Terminal Finish:

    Matte Tin (Sn)

  • Time@Peak Reflow Temperature-Max (s):

    30

X9259US24IZ Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the X9259US24IZ is -40°C to +85°C, as specified in the datasheet. However, it's essential to note that the device can operate at a wider temperature range, but with reduced performance and reliability.
  • To ensure reliable I2C communication, make sure to follow the I2C bus specification, use pull-up resistors on the SCL and SDA lines, and configure the I2C clock frequency according to the datasheet. Additionally, implement error handling and retries in your firmware to account for potential bus errors.
  • The datasheet recommends a VCC bypass capacitor with a value between 0.1 μF and 10 μF. However, the maximum capacitance value depends on the specific application and PCB layout. As a general rule, use a capacitor with a value of 1 μF to 4.7 μF for most applications.
  • The X9259US24IZ has an internal POR and BOD circuitry. To handle these features, ensure that your power supply is stable and within the recommended voltage range. Implement a power-on reset circuit or use an external reset controller to manage the device's reset sequence. Additionally, consider using a voltage supervisor or a separate BOD circuit to detect brown-out conditions.
  • To ensure optimal performance and minimize noise, follow these layout and routing guidelines: keep the device's power and ground pins as close as possible, use a solid ground plane, and route the I2C lines away from noise sources. Additionally, use a 4-layer PCB with a dedicated power plane and a separate ground plane to reduce noise and improve signal integrity.
