X9313WSZ-3 - Renesas Electronics

Description: The Intersil X9313 is a digitally controlled potentiometer (XDCP). The device consists of a resistor array, wiper switches, a control section, and nonvolatile memory. The wiper position is controlled by a 3-wire interface. The potentiometer is implemented by a resistor array composed of 31 resistive elements and a wiper switching network. Between each element and at either end are tap points accessible to the wiper terminal. The position of the wiper element is controlled by the CS, U/D, and INC inputs. The

Download X9313WSZ-3 Model

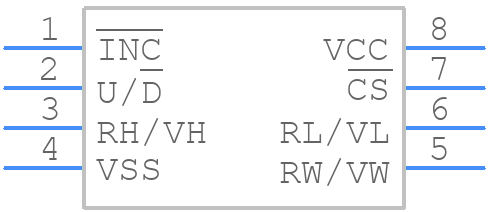

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
X9313WSZ-3 - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - M8.15-ren4
click to zoom
3D Models
X9313WSZ-3 - Renesas Electronics  - 3D model - Small Outline Packages - M8.15-ren4
click to zoom

X9313WSZ-3 Details

  • Manufacturer Part Number:

    X9313WSZ-3

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOICN

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    M8.15

  • Country Of Origin:

    Malaysia, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    5

  • Additional Feature:

    NONVOLATILE MEMORY

  • Control Interface:

    INCREMENT/DECREMENT

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Positions:

    32

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Resistance Law:

    LINEAR

  • Resistance Tolerance-Max:

    20%

  • Resistor Terminal Voltage-Max:

    3 V

  • Resistor Terminal Voltage-Min:

    -3 V

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Coefficient-Nom:

    300 ppm/°C

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Resistance-Nom:

    10000 Ω

  • Width:

    3.9 mm

X9313WSZ-3 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a dedicated ground plane and thermal vias is recommended to ensure optimal thermal performance. The datasheet provides a recommended land pattern, but additional thermal design considerations should be taken into account.
  • To ensure reliable communication, implement proper EMI shielding, use twisted pair wiring, and consider adding common-mode chokes or ferrite beads to the signal lines. Additionally, ensure the system's power supply is well-regulated and decoupled.
  • The internal oscillator has a limited frequency accuracy of ±2% and is sensitive to temperature and voltage variations. For critical applications, consider using an external crystal oscillator or a more accurate clock source.
  • The X9313WSZ-3 has a built-in brownout detection feature. To handle brownout detection and reset, implement a power-on reset circuit and ensure the system's power supply is stable before releasing the reset signal.
  • Use a development environment like IAR Embedded Workbench or Keil µVision, and take advantage of the X9313WSZ-3's built-in debugging features, such as the on-chip debugger and serial wire debug. Implement a modular firmware design and use version control to track changes.
