X9C102P - Renesas Electronics

Description: Digital Potentiometer ICs

Download X9C102P Model

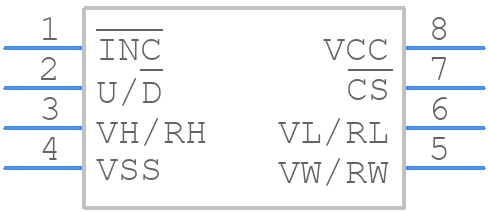

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
X9C102P - Renesas Electronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 8 Ld PDIP*
click to zoom
3D Models
X9C102P - Renesas Electronics  - 3D model - Dual-In-Line Packages - 8 Ld PDIP*
click to zoom

X9C102P Details

  • Manufacturer Part Number:

    X9C102P

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DIP-8

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Control Interface:

    INCREMENT/DECREMENT

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    R-PDIP-T8

  • Length:

    9.525 mm

  • Number of Functions:

    1

  • Number of Positions:

    100

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Resistance Law:

    LINEAR

  • Resistance Tolerance-Max:

    20%

  • Resistor Terminal Voltage-Max:

    5 V

  • Resistor Terminal Voltage-Min:

    -5 V

  • Seated Height-Max:

    5.334 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Coefficient-Nom:

    600 ppm/°C

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Resistance-Nom:

    1000 Ω

  • Width:

    7.62 mm

X9C102P Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the X9C102P is 2.7V to 5.5V, although it can operate as low as 1.8V with reduced performance.
  • To ensure reliable data retention, it is recommended to follow the recommended storage conditions, avoid exposing the device to extreme temperatures, and use a voltage regulator to maintain a stable power supply.
  • The X9C102P supports a maximum clock frequency of 400 kHz, although it can operate at lower frequencies depending on the application requirements.
  • Yes, the X9C102P has built-in noise filtering and hysteresis to improve noise immunity, but it is still recommended to follow proper PCB design and layout practices to minimize noise coupling.
  • The X9C102P has a built-in watchdog timer that can be enabled and configured using the device's control registers. The watchdog timer can be used to reset the system in case of a software or hardware failure.
