X9C103SI - Renesas Electronics

Description: Digital Potentiometer 10k Ohm 1 Circuit 100 Taps Up/Down (U/D, INC, CS) Interface 8-SOIC

Download X9C103SI Model

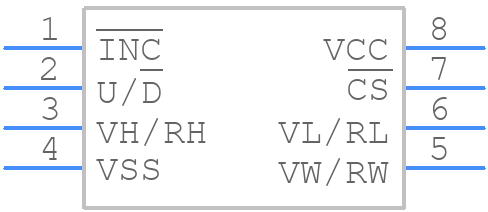

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
X9C103SI - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - M8.15
click to zoom
3D Models
X9C103SI - Renesas Electronics  - 3D model - Small Outline Packages - M8.15
click to zoom

X9C103SI Details

  • Manufacturer Part Number:

    X9C103SI

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SOIC-8

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Control Interface:

    INCREMENT/DECREMENT

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9022 mm

  • Number of Functions:

    1

  • Number of Positions:

    100

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Resistance Law:

    LINEAR

  • Resistance Tolerance-Max:

    20%

  • Resistor Terminal Voltage-Max:

    5 V

  • Resistor Terminal Voltage-Min:

    -5 V

  • Seated Height-Max:

    1.7272 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Coefficient-Nom:

    300 ppm/°C

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Resistance-Nom:

    10000 Ω

  • Width:

    3.9116 mm

X9C103SI Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the X9C103SI is 2.7V to 5.5V, although it can operate as low as 1.8V with reduced performance.
  • To ensure reliable data retention, it is recommended to follow the recommended storage conditions, including temperature range, humidity, and voltage supply. Additionally, it is recommended to use a capacitor to decouple the power supply and to avoid sudden power-down or power-up cycles.
  • The maximum clock frequency supported by the X9C103SI is 400 kHz, although it can operate at higher frequencies with reduced performance and increased power consumption.
  • The X9C103SI has a built-in POR and BOR feature that resets the device during power-up or brown-out conditions. To handle these features, it is recommended to use an external reset circuit or to use the device's internal reset signal to initialize the device after power-up or brown-out conditions.
  • The X9C103SI has an endurance rating of 100,000 write cycles, although this can vary depending on the operating conditions and usage patterns.
