X9C104PI - Renesas Electronics

Description: Digital Potentiometer ICs

Download X9C104PI Model

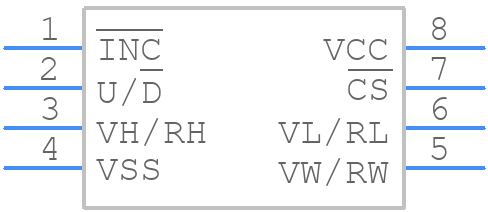

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
X9C104PI - Renesas Electronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - MDP0031
click to zoom
3D Models
X9C104PI - Renesas Electronics  - 3D model - Dual-In-Line Packages - MDP0031
click to zoom

X9C104PI Details

  • Manufacturer Part Number:

    X9C104PI

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DIP-8

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Control Interface:

    INCREMENT/DECREMENT

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    R-PDIP-T8

  • Length:

    9.525 mm

  • Number of Functions:

    1

  • Number of Positions:

    100

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Resistance Law:

    LINEAR

  • Resistance Tolerance-Max:

    20%

  • Resistor Terminal Voltage-Max:

    5 V

  • Resistor Terminal Voltage-Min:

    -5 V

  • Seated Height-Max:

    5.334 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Coefficient-Nom:

    300 ppm/°C

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Resistance-Nom:

    100000 Ω

  • Width:

    7.62 mm

X9C104PI Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the X9C104PI is 2.5V to 5.5V, although it can operate as low as 1.8V with reduced performance.
  • To ensure reliable data retention, it is recommended to follow the recommended storage conditions, avoid exposing the device to extreme temperatures, and use a voltage regulator to maintain a stable power supply.
  • The X9C104PI supports a maximum clock frequency of 400 kHz, although it can operate at lower frequencies depending on the application requirements.
  • The X9C104PI is rated for operation up to 85°C, but it can be used in higher temperature environments with reduced performance and reliability. It is recommended to consult the datasheet and application notes for specific guidance.
  • The X9C104PI can be interfaced with a microcontroller using a standard I2C or SPI interface. The specific interface and protocol will depend on the microcontroller and application requirements.
