A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1mm clearance around the device for heat dissipation. A thermal pad on the bottom of the device should be connected to a thermal plane on the PCB.
The device requires a 5V supply voltage and a bias current of 100mA. Ensure the bias circuit is designed to provide a stable voltage and current to the device. A voltage regulator and decoupling capacitors are recommended.
The device has a 50Ω input and output impedance. Ensure impedance matching networks are designed to match the device's impedance to the system's impedance (typically 50Ω) for optimal power transfer and minimal reflections.
The device has a built-in thermal shutdown feature that disables the device when the junction temperature exceeds 150°C. Ensure the system is designed to detect and respond to this condition. A thermal monitoring circuit can be implemented to detect over-temperature conditions and take corrective action.
The device has internal ESD protection, but handling precautions are still necessary. Ensure proper ESD handling procedures are followed during assembly and testing, such as using ESD-safe materials, wrist straps, and ionizers.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XB1008-QT-0G00 Overview

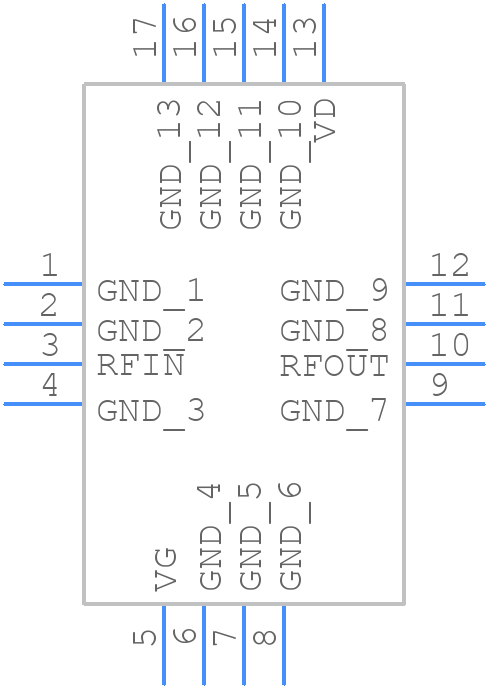

Use the download button to access the XB1008-QT-0G00 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XB100,
or try a keyword search, such as RF/Microwave Amplifiers
