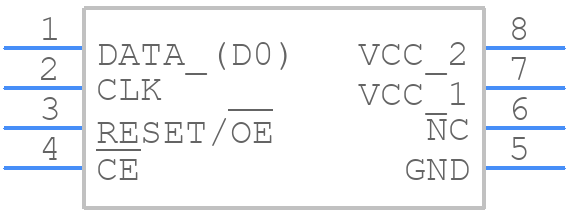

XC17S150AVO8C - AMD

XC17S150AVO8C Details

• Manufacturer Part Number:

  XC17S150AVO8C

• Part Life Cycle Code:

  Obsolete

• Package Description:

  SOIC-8

• ECCN Code:

  EAR99

• HTS Code:

  8542.32.00.51

• Manufacturer:

  AMD

• YTEOL:

  0

• Data Retention Time-Min:

  20

• JESD-30 Code:

  R-PDSO-G8

• Length:

  4.9 mm

• Memory Density:

  1040096 bit

• Memory IC Type:

  CONFIGURATION MEMORY

• Memory Width:

  1

• Number of Functions:

  1

• Number of Terminals:

  8

• Number of Words:

  1040096 words

• Number of Words Code:

  1040096

• Operating Mode:

  SYNCHRONOUS

• Operating Temperature-Max:

  70 °C

• Organization:

  1040096X1

• Output Characteristics:

  3-STATE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSOP

• Package Equivalence Code:

  TSOP8,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, THIN PROFILE

• Parallel/Serial:

  SERIAL

• Programming Voltage:

  5 V

• Seated Height-Max:

  1.2 mm

• Standby Current-Max:

  0.001 A

• Supply Current-Max:

  0.015 mA

• Supply Voltage-Max (Vsup):

  3.6 V

• Supply Voltage-Min (Vsup):

  3 V

• Supply Voltage-Nom (Vsup):

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Width:

  3.9 mm
