XC2764X40F80LRABKXUMA1 - Infineon

XC2764X40F80LRABKXUMA1 Details

• Manufacturer Part Number:

  XC2764X40F80LRABKXUMA1

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

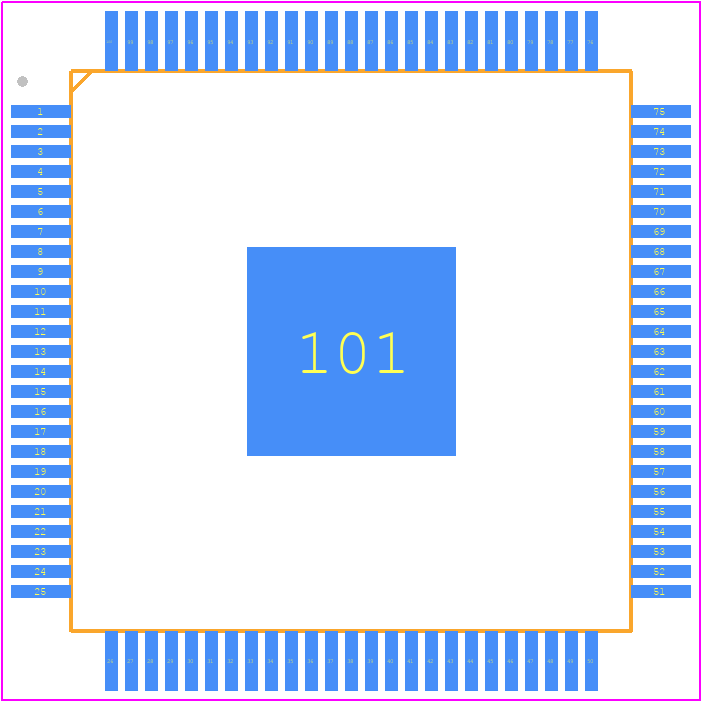

• Package Description:

  LQFP-100

• Country Of Origin:

  Malaysia

• ECCN Code:

  3A991.a.2

• HTS Code:

  8542.31.00.25

• Factory Lead Time:

  36 Weeks

• Manufacturer:

  Infineon Technologies AG

• YTEOL:

  0

• Has ADC:

  YES

• Address Bus Width:

  24

• Bit Size:

  32

• Clock Frequency-Max:

  40 MHz

• DAC Channels:

  NO

• DMA Channels:

  NO

• External Data Bus Width:

  16

• JESD-30 Code:

  S-PQFP-G100

• Length:

  14 mm

• Moisture Sensitivity Level:

  3

• Number of I/O Lines:

  76

• Number of Terminals:

  100

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HLFQFP

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

• RAM (bytes):

  32768

• ROM (words):

  327680

• ROM Programmability:

  FLASH

• Seated Height-Max:

  1.6 mm

• Speed:

  80 MHz

• Supply Voltage-Max:

  1.6 V

• Supply Voltage-Min:

  1.4 V

• Supply Voltage-Nom:

  1.5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  AUTOMOTIVE

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Width:

  14 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER, RISC
