A good PCB layout for XC6216DC02PR-G involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure the stability of the XC6216DC02PR-G output voltage, it is essential to use a suitable output capacitor with a low ESR value, such as a ceramic capacitor. The output capacitor should be placed close to the IC, and the output voltage should be monitored and adjusted as needed.
The maximum ambient temperature range for the XC6216DC02PR-G is -40°C to 85°C. However, the device can operate at a higher temperature range with derating. It is essential to ensure that the device does not exceed the maximum junction temperature of 125°C.
Yes, the XC6216DC02PR-G is suitable for high-reliability applications. It is manufactured using a high-reliability process, and it has undergone rigorous testing to ensure its reliability. However, it is essential to follow proper design and manufacturing guidelines to ensure the reliability of the final product.
To troubleshoot issues with the XC6216DC02PR-G, start by checking the input voltage, output voltage, and output current. Verify that the input and output capacitors are properly connected and that the PCB layout is correct. Check for any signs of overheating, and ensure that the device is operated within its recommended operating conditions.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XC6216DC02PR-G Overview

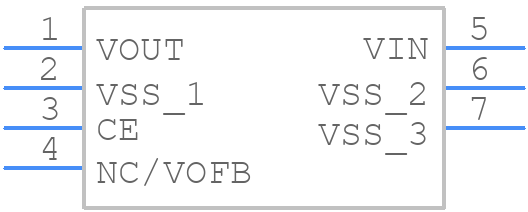

Use the download button to access the XC6216DC02PR-G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XC621,
or try a keyword search, such as Linear Regulator ICs
