Torex recommends a compact PCB layout with minimal trace lengths and widths to reduce parasitic inductance and capacitance. A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Additionally, place decoupling capacitors close to the IC and use a common ground point for the input and output capacitors.
To ensure stable output voltage, make sure to use a suitable output capacitor with a low ESR (Equivalent Series Resistance) and a high ripple current rating. The output capacitor should be placed close to the IC, and the input capacitor should be placed close to the power source. Additionally, ensure that the input voltage is within the recommended range and the output current is within the specified limit.
The maximum ambient temperature for reliable operation of XC6221B302GR-G is 85°C. However, the IC can operate up to 105°C with derating. It's essential to ensure proper heat dissipation and thermal management to prevent overheating, especially in high-power applications.
Yes, XC6221B302GR-G is designed to operate in high-vibration environments. However, it's essential to ensure that the PCB is properly secured and the IC is mounted using a suitable mounting method, such as a surface-mount device (SMD) or a through-hole device, to prevent mechanical stress and damage.
To troubleshoot issues with XC6221B302GR-G, start by checking the input voltage, output voltage, and output current. Verify that the input and output capacitors are properly connected and meet the recommended specifications. Check for any signs of overheating, such as excessive temperature or thermal shutdown. If the issue persists, consult the datasheet and application notes or contact Torex Semiconductor LTD's technical support team for further assistance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XC6221B302GR-G Overview

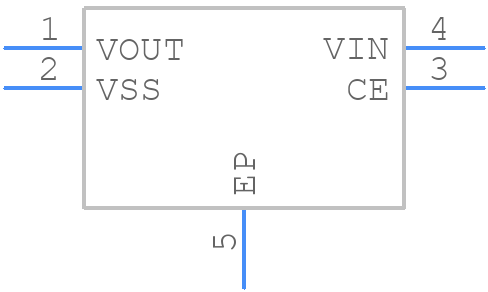

Use the download button to access the XC6221B302GR-G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XC622,
or try a keyword search, such as Linear Regulator ICs
