Torex provides a recommended PCB layout in their application note AN-102, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The output capacitor selection depends on the output voltage, output current, and ripple requirements. Torex recommends using a low-ESR ceramic capacitor with a value between 1uF to 10uF, and a voltage rating of at least 1.5 times the output voltage. Refer to the datasheet and application notes for more details.
The maximum ambient temperature for reliable operation of XC6222D181PR-G is 85°C, as specified in the datasheet. However, it's recommended to derate the output current and voltage according to the thermal derating curve to ensure reliable operation over the entire operating temperature range.
Yes, XC6222D181PR-G is suitable for high-reliability and automotive applications. Torex provides a range of reliability and quality certifications, including AEC-Q100, IATF 16949, and ISO 9001. However, it's essential to consult with Torex's sales team and review the device's qualification data to ensure it meets the specific requirements of your application.
Torex provides a troubleshooting guide in their application note AN-101, which covers common issues and their solutions. Additionally, it's recommended to review the datasheet, application notes, and design guidelines to ensure correct usage and implementation of the device.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XC6222D181PR-G Overview

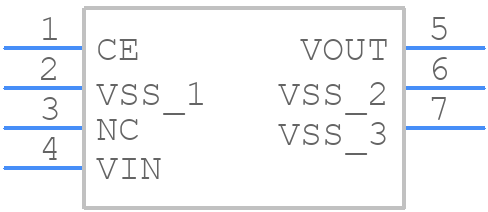

Use the download button to access the XC6222D181PR-G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XC622,
or try a keyword search, such as Linear Regulator ICs
