A good PCB layout for XC6227C331ER-G involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure the stability of the XC6227C331ER-G output voltage, it is essential to use a suitable output capacitor with a low ESR (Equivalent Series Resistance) and a sufficient capacitance value. A minimum capacitance value of 1uF is recommended, and the capacitor should be placed close to the IC.
The maximum ambient temperature range for the XC6227C331ER-G is -40°C to 85°C. However, the device can operate at a junction temperature of up to 125°C.
Yes, the XC6227C331ER-G is suitable for high-reliability applications. It is manufactured using a high-reliability process and has undergone rigorous testing to ensure its quality and reliability.
The power dissipation of the XC6227C331ER-G can be calculated using the formula: Pd = (Vin - Vout) x Iout + (Vin x Iq), where Pd is the power dissipation, Vin is the input voltage, Vout is the output voltage, Iout is the output current, and Iq is the quiescent current.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XC6227C331ER-G Overview

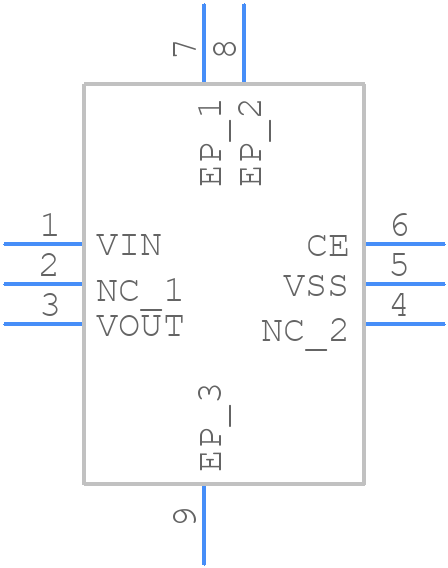

Use the download button to access the XC6227C331ER-G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XC622,
or try a keyword search, such as Linear Regulator ICs
